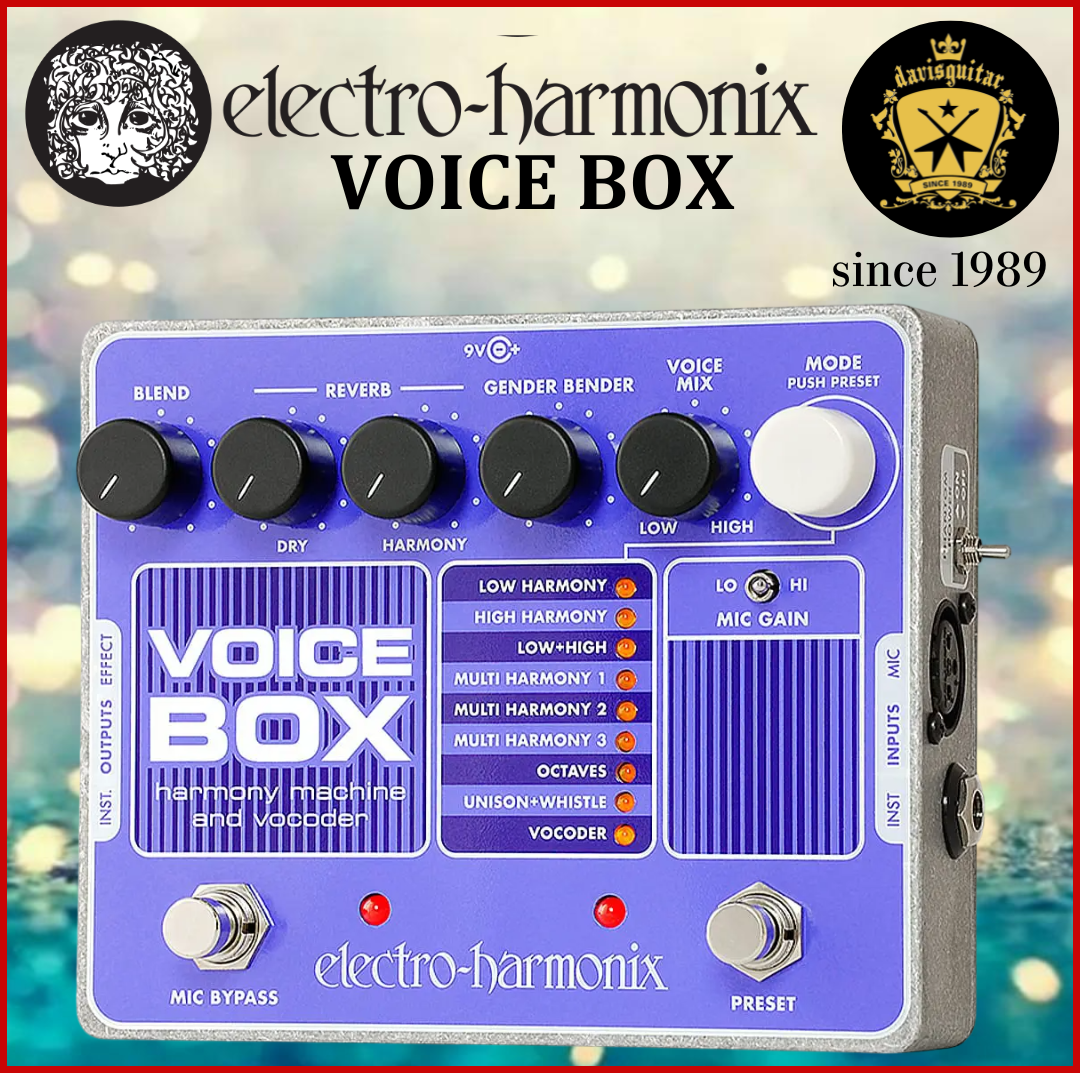

Electro-Harmonix EHX Voice Box Vocal Harmony Machine Vocoder Effect Pedal

Electro-Harmonix EHX Voice Box Vocal Harmony Machine/Vocoder – 256-Band Vocoder, 2- to 4-Part Harmonies, 9 Presets, Gender Bender & Phantom Power | Power Supply Included

Description:

Diana Ross had the Supremes, Brian Wilson had the Beach Boys, Kraftwerk had The Robots. You have the Voice Box.

The EHX Voice Box Vocal Harmony Machine and Vocoder packs a multi-functional vocal synth processor into a tough and compact chassis. Sing, and you'll have a troupe of backup singers following you in perfect harmony. Or use the built-in vocoder to unleash classic synth-robot sounds.

The harmony processor creates 2- to 4-part harmonies directly from your vocals, in the same key as your accompanying instrument. Studio-quality reverb lets you independently add depth to your dry and harmony vocals. The focused 256-band articulate vocoder, designed by the same EMS genius who made vocoding famous, features adjustable harmonic enhancement and controllable formant shift.

Plug in your mic and your instrument, and let your new voice—or voices—be heard!

Key Features:

• Vocal Harmony Processor: Creates 2- to 4-part harmonies from your vocals, keyed to your instrument

• 256-Band Articulate Vocoder: Designed by the legendary EMS engineer, featuring adjustable harmonic enhancement and formant shift

• 9 Programmable Presets: Save and recall your favorite settings instantly

• Gender Bender Knob: Allows for male/female formant modification

• Studio-Quality Reverb: Independently add depth to dry and harmony vocals

• Multiple Harmony Modes: Low Harmony, High Harmony, Low + High, Multi Harmony 1, 2 & 3, Octaves, Unison + Whistle, and Vocoder

• Octave, Whistle & Unison Effects: Octave mode produces harmonies above and below; Whistle mode synthesizes a tone 2 octaves above; Unison mode offers formant shaping without pitch shifting

• Natural Glissando: Smooth, realistic pitch transitions between harmonies

• Built-In Mic Preamp: XLR input with switchable +45V phantom power for condenser microphones

• Gain Switch: Selectable LO (15dB) or HI (25dB) gain for various microphone levels

• Balanced XLR Line Output: Interface directly with mixing boards or A/D converters

• Clean Analog Instrument Through: Transparent instrument signal path

• Buffered Bypass: Preserves signal integrity

• Power Supply Included: Complete with 9.6VDC-200mA adapter

Technical Specifications:

• Effect Type: Vocal Harmony / Vocoder

• Circuit: Digital

• Bypass: Buffered Bypass

• Audio: Mono

• Controls: MODE, GENDER BENDER, DRY, HARMONY, VOICE MIX, BLEND

• Switches: PRESET Footswitch, MIC BYPASS Footswitch, MIC GAIN Toggle, PHANTOM POWER Toggle

• Analog Inputs: 1 x XLR (Mic), 1 x ¼" (Instrument)

• Analog Outputs: 1 x XLR (Balanced Line Out), 1 x ¼" (Instrument)

• Input Impedance: 2.2 MΩ

• Output Impedance: 700 Ω

• Power Supply: 9.6VDC-200mA adapter included (center negative)

• Current Draw: 200mA

• Dimensions (W x L x H): 5.75" x 4.75" x 2.5" (146mm x 121mm x 64mm)

• Weight: 1.9 lbs (0.88 kg)

• Country of Origin: USA
