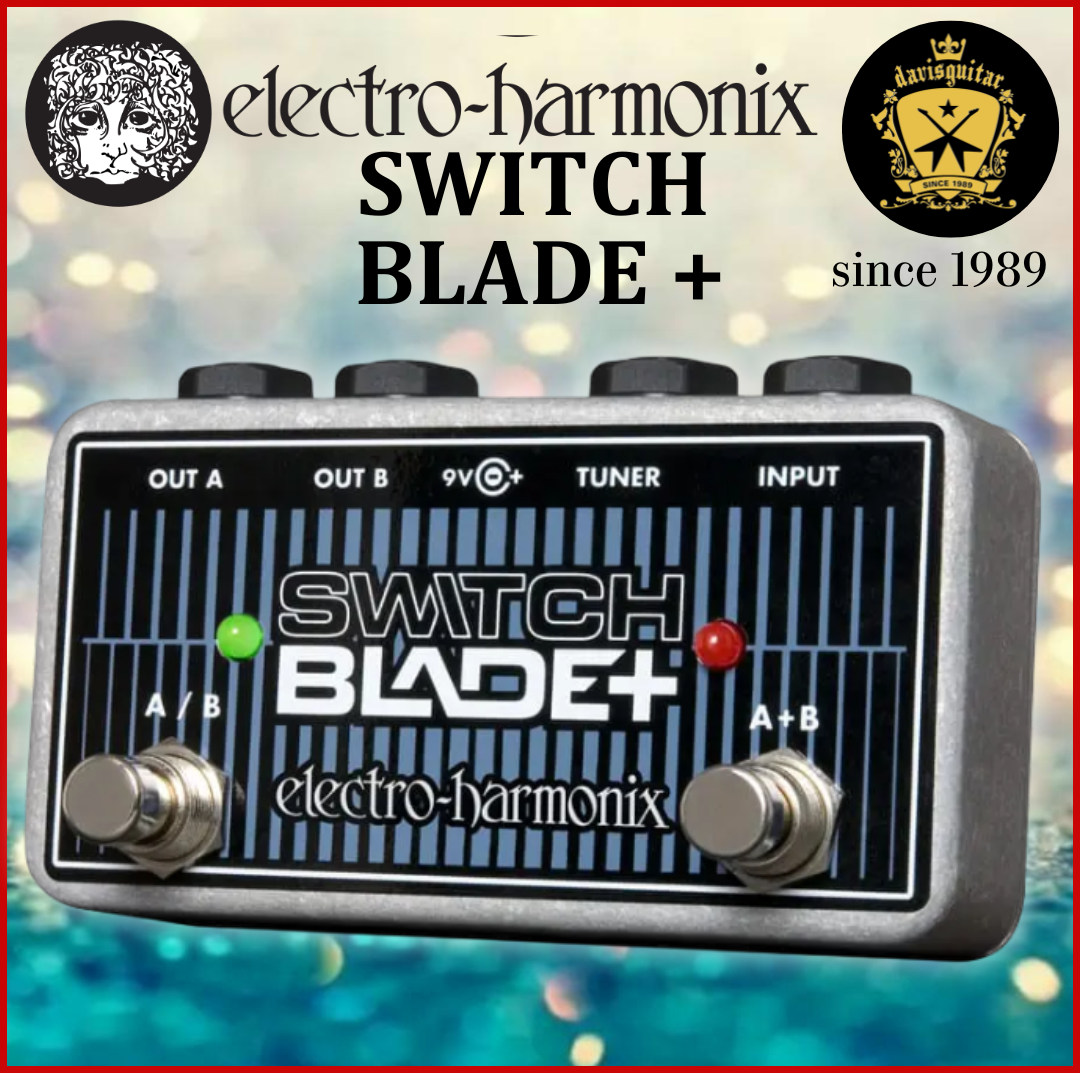

Electro-Harmonix EHX Switchblade Plus – 2-Channel ABY Switcher Pedal

Electro-Harmonix Switchblade Plus – 2-Channel ABY Switcher | A/B or A+B Routing, Dedicated Tuner Output & Passive Operation

Description:

Route Your Signal. Switch Your Sound.

The EHX Switchblade Plus is a versatile 2-channel ABY switcher that gives you complete control over your signal routing. Whether you need to switch between two amplifiers, blend them together, or route your signal to multiple effects chains, the Switchblade Plus delivers effortless, transparent switching in a compact, pedalboard-friendly package.

With two footswitches and intuitive LED indicators, the Switchblade Plus allows you to select between two outputs (A or B) or combine both simultaneously (A+B) for a massive, layered sound. The dedicated TUNER output is hardwired to the input, providing a constant signal to your tuner regardless of the pedal's state—so you can tune silently without interrupting your signal path. Built with passive circuitry, the Switchblade Plus requires no power supply, making it a reliable, no-fuss solution for any rig.

Key Features:

• A/B Footswitch (Red/Green LED): Routes the input signal to either OUT A (Red LED) or OUT B (Green LED)—perfect for switching between two amplifiers or effects chains.

• A+B Footswitch (Red LED): Routes the input signal to both OUT A and OUT B simultaneously for a thick, layered sound. When A+B is engaged, the A/B Footswitch has no effect on the signal path.

• Dedicated Tuner Output: The TUNER jack is hardwired to the INPUT jack, providing a constant direct output regardless of the unit's state—tune silently without interrupting your main signal.

• Passive Operation: Requires no power supply—simply plug in and play with zero noise or signal coloration.

• Compact & Pedalboard-Ready: Small footprint design fits easily on any pedalboard.

• Clear Visual Feedback: Red and Green LEDs provide instant visual confirmation of your current routing status.

• Versatile Routing Options: Ideal for switching between two amps, running two effects chains in parallel, or combining amplifiers for a massive stereo sound.

Technical Specifications:

• Input Jack: 1 x ¼" (connect instrument or effects pedal output)

• Tuner Jack: 1 x ¼" (hardwired to INPUT, always active regardless of footswitch state)

• OUT A Jack: 1 x ¼" (routes signal when A/B Red LED is lit or A+B is engaged)

• OUT B Jack: 1 x ¼" (routes signal when A/B Green LED is lit or A+B is engaged)

• Footswitches: A/B Footswitch (with Red/Green LED), A+B Footswitch (with Red LED)

• Power: Passive – No power supply required

• Dimensions (W x L x H): 2.75" x 4.5" x 2.1" (70mm x 114mm x 53mm)
