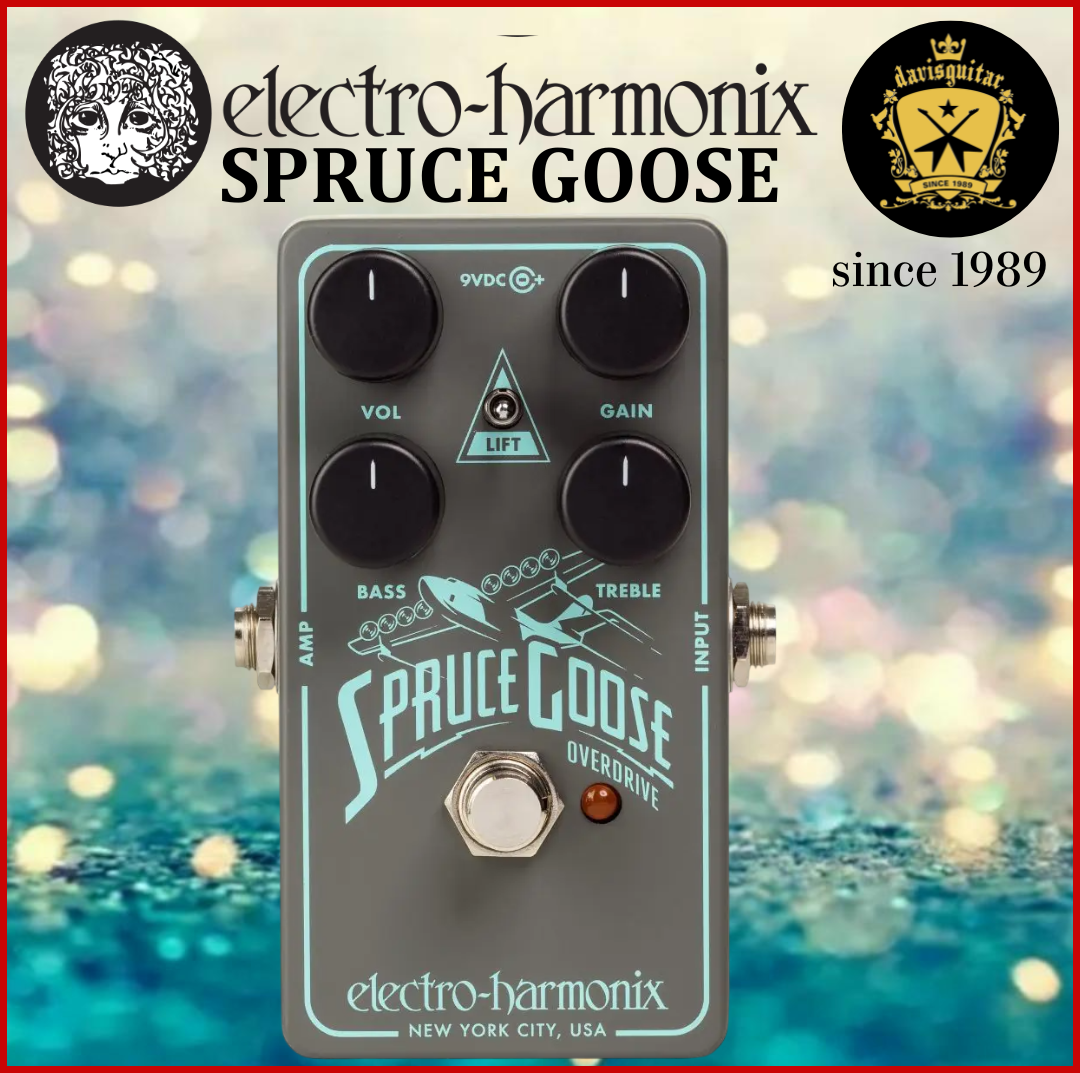

Electro-Harmonix EHX Spruce Goose Overdrive Guitar Effect Pedal

Electro-Harmonix EHX Spruce Goose Overdrive – Bluesbreaker®-Style OD with LIFT Switch | Active Bass, Treble, Gain & Volume Controls | True Bypass with Latching/Momentary Action | 9V Battery Included

Description:

Liftoff with the EHX Spruce Goose Overdrive!

The EHX Spruce Goose Overdrive is an elevated take on a Bluesbreaker®-style OD with a smooth, rich breakup that retains clarity and dynamics. The Spruce Goose soars with a host of new features including a LIFT switch accessing 3 input gain settings, additional output, and expanded EQ to send your tone flying! From meaty boost to smooth singing leads, the Spruce Goose steers your tone into a variety of inspiring and musical directions.

The engine of the Spruce Goose is an overdrive circuit renowned for its natural breakup and amp-like response. This circuit is then elevated to new heights by the LIFT switch which selects between 3 levels of input gain. LIFT effectively works as an input boost, goosing the front end of the drive circuit, hitting harder, and producing a more compressed, saturated tone while still retaining its dynamic feel and transparent tone.

GAIN and VOL knobs adjust for exact drive and output levels. The EQ consists of a TREBLE knob for taming top end and an active BASS knob to cut or boost bass frequencies. BASS is especially helpful for adding girth to single coil guitars or tightening the low end on warmer humbucker guitars.

The Spruce Goose also features mechanical relay true bypass switching with latching and momentary action. Tap the footswitch for a normal latching toggle, or press and hold the footswitch for a momentary blast of gain and boost! Great for stepping out in front of the mix for pulling quick licks or moments of sonic chaos.

Key Features:

• Bluesbreaker®-Style Overdrive Circuit: Renowned for its natural breakup, amp-like response, clarity, and dynamics

• LIFT Switch: Selects between 3 input gain settings for increased saturation and compression while retaining dynamic feel

• Active BASS Knob: Cuts or boosts bass frequencies—ideal for adding girth to single coils or tightening humbuckers

• TREBLE Knob: Tames top-end frequencies for smooth, balanced tone

• GAIN & VOL Knobs: Precise control over drive and output levels

• Enhanced Output Range: More output than traditional Bluesbreaker-style circuits

• True Bypass with Soft Footswitch: Features both latching and momentary action—tap for normal on/off, or press and hold for a temporary boost

• 9V Battery Included: Ready to play straight out of the box

• Analog Circuit: All-analog design for warm, organic overdrive tones

Technical Specifications:

• Effect Type: Overdrive

• Circuit: Analog

• Bypass: Mechanical Relay True Bypass (Soft Footswitch with Latching/Momentary Action)

• Audio: Mono

• Controls: VOL, GAIN, TREBLE, BASS

• Switch: LIFT (3-position)

• Input: 1 x ¼"

• Output: 1 x ¼"

• Power Supply: 9V battery included (optional 9VDC power adapter not included, center negative)

• Current Draw: 8mA

• Unboxed Dimensions (W x D x H): 4.5" x 2.75" x 2.1" (114mm x 70mm x 53mm)

• Country of Origin: USA
