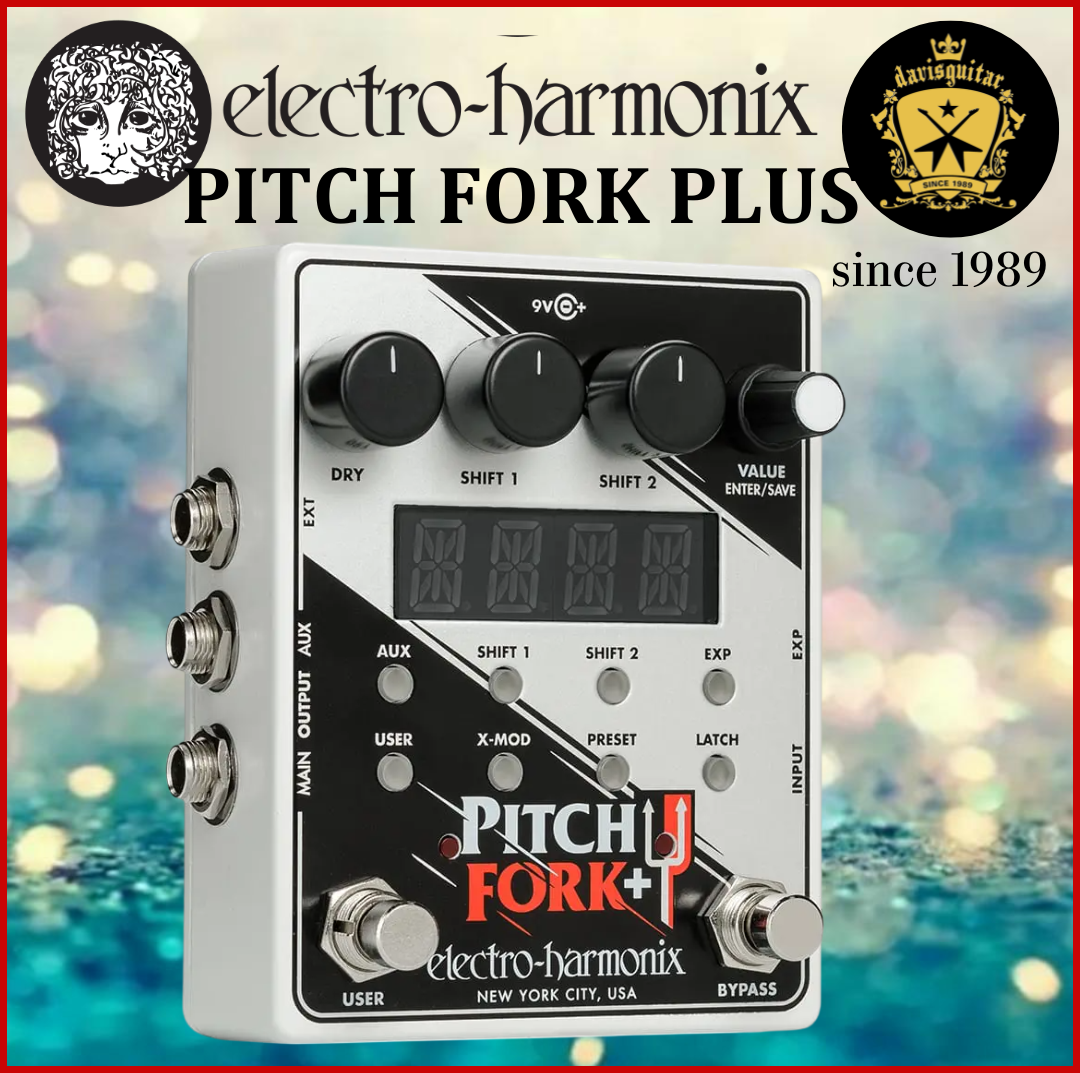

Electro-Harmonix EHX Pitch Fork+ Polyphonic Pitch Shifter Guitar Effect Pedal

Electro-Harmonix EHX Pitch Fork+ Polyphonic Pitch Shifter/Harmonizer – Dual Independent Engines | ±3 Octave Range, ±99 Cents Detune | 100 Presets, Expression & EXT Control | Power Supply Included

Description:

Two Engines. Infinite Pitch Possibilities. Ultimate Control.

The EHX Pitch Fork+ is the ultimate polyphonic pitch shifter and harmonizer, evolving the beloved original Pitch Fork into a dual-engine powerhouse. Featuring two independent pitch shifting engines, this pedal allows you to create massive harmonies, wild pitch sweeps, and subtle detuning effects with unparalleled flexibility. With rock-solid polyphonic tracking that handles full chords with clarity, an organic, musical tone, and an extensive array of control options, the Pitch Fork+ is the ultimate harmonizer for guitarists and bassists alike.

Each engine can transpose your pitch up or down over a massive ±3 octave range or detune by ±99 cents, perfect for creating lush double-tracking effects. Eight distinct modes, including the innovative X-MOD for FM and ring-mod style effects, provide endless creative possibilities. Dedicated volume controls for Shift 1, Shift 2, and the Dry signal give you independent level control over every element of your sound. With 10 factory presets and the ability to save up to 100 of your own programs, a programmable User footswitch, and expression pedal input for real-time control over Frequency, Glissando, and Volume, the Pitch Fork+ is a pitch-shifting powerhouse ready for the studio or the stage.

Key Features:

• Dual Independent Pitch-Shifting Engines: Two identical, independent processors provide massive harmonic possibilities, from simple octaves to complex, multi-layered pitch effects.

• ±3 Octave Range & ±99 Cent Detune: Each engine can transpose pitch up or down over three octaves or detune for subtle chorusing and double-tracking effects.

• 100 Presets (10 Factory + 90 User): Save and recall up to 100 programs, with 10 unique factory presets to get you started.

• Dedicated Volume Controls: Independent level controls for Shift 1, Shift 2, and the Dry signal allow for precise balance of your pitch-shifted and clean tones.

• 8 Operating Modes: Includes versatile modes like X-MOD (cross-modulation for FM and ring-mod effects) and LATCH (enhanced momentary/latch functionality).

• Programmable User Footswitch: Assign the second footswitch to a variety of functions, such as muting a shift voice, jumping to a preset, or more.

• Expression & EXT Control: EXP input for expression pedal or CV control over Frequency, Glissando, and Volume. EXT input for connecting an external controller like the EHX Triple Foot Controller for hands-free mode changes and preset loading.

• Selectable Bypass & Momentary Mode: The bypass footswitch toggles between buffered bypass and effect on; in Momentary mode, the effect is only active while the footswitch is held down.

• 4-Character LED Display: Bright display shows current parameter values, mode settings, and preset numbers for easy navigation.

• Multiple Routing Options: Main and Aux outputs provide flexible routing possibilities for your signal.

• Power Supply Included: Comes complete with a 9.6VDC-200mA power adapter.

Technical Specifications:

• Effect Type: Polyphonic Pitch Shifter / Harmonizer

• Circuit: Digital

• Pitch Shift Range: ±3 Octaves (per engine)

• Detune Range: ±99 Cents (per engine)

• Presets: 10 Factory / 90 User (100 Total)

• Modes: 8 (including X-MOD, LATCH, etc.)

• Controls: Dry, Shift 1, Shift 2, Value (rotary encoder with push function)

• Footswitches: Bypass (Latch/Momentary), User (Programmable)

• Inputs: 1 x ¼" (Instrument), 1 x ¼" (EXP/CV), 1 x ¼" (EXT Controller)

• Outputs: 1 x ¼" (Main), 1 x ¼" (Aux)

• Display: 4-Character LED

• Bypass: Buffered Bypass

• Current Draw: 120mA at 9VDC

• Power Supply: 9.6VDC-200mA power adapter included (center negative)

• Dimensions (W x L x H): 4.13" x 4.75" x 2.25" (105mm x 121mm x 57mm)

• Country of Origin: USA
