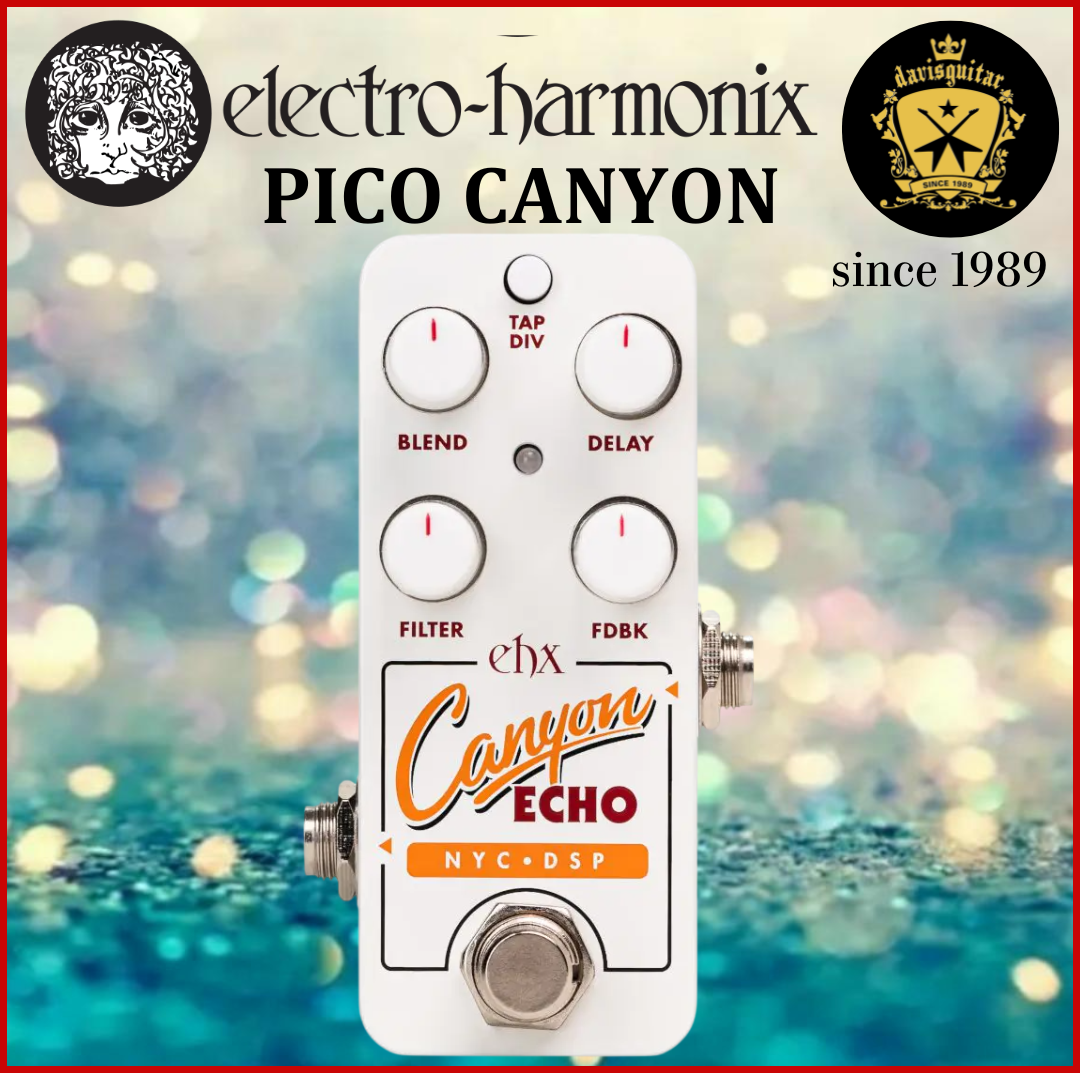

Electro Harmonix EHX Pico Canyon Echo Digital Delay Electric Guitar Effect Pedal

Electro-Harmonix Pico Canyon Echo Digital Delay Pedal – Award-Winning Canyon Engine | 3s Delay, Tap Tempo, Filter, Infinite Repeats & Tails | Pico Enclosure, PSU Included

Description:

The Canyon Is Deep. The Pedal Is Tiny.

The EHX Pico Canyon Echo harvests the pristine digital delay engine from the award-winning Canyon Delay & Looper and plates it up as a single-serving echo unit. Starting with a crystal-clean delay, this sweetly simple pedal offers up to 3 seconds of delay time, making it capable of everything from tight slapback to vast, atmospheric soundscapes.

Don't let the ultra-compact Pico chassis fool you—this pedal is deep. A powerful FILTER knob lets you shape the tone of your repeats, acting as a Low-Pass Filter (below noon) for warm, soupy echoes or a High-Pass Filter (past noon) for a thinner, cutting sound. The FEEDBACK knob is adjustable from a single repeat to infinite repeats for endless washes and pads. A new style of Infinite Repeats creates a micro looper that can be played over and manipulated into warped sound effects by adjusting the DELAY knob.

Tap Tempo is simple and intuitive: just press and release the footswitch at least twice, and the LED blinks to confirm your tempo. The TAP DIV button allows you to subdivide the tempo from a quarter note to a dotted eighth note to an eighth note. Additionally, selectable Tails bypass ensures your echoes continue to fade naturally after the pedal is disengaged. Housed in a rugged Pico chassis and including a power supply, the Canyon Echo is the ultimate compact delay for any pedalboard.

Key Features:

• Award-Winning Delay Engine: Pristine digital delay sourced from the acclaimed EHX Canyon Delay & Looper.

• Up to 3 Seconds of Delay Time: Offers a vast range from subtle doubling to expansive atmospheric echoes.

• Tap Tempo with 3 Divisions: Set the tempo with the footswitch and subdivide using the TAP DIV button (Quarter, Dotted Eighth, Eighth).

• Filter Control: Shapes the tone of the repeats—turn counter-clockwise for a warm Low-Pass Filter or clockwise for a High-Pass Filter.

• Infinite Repeats & Micro Looper: FEEDBACK adjustable from 1 repeat to infinite. A unique feature loops a single repeat that can be manipulated with the DELAY knob, acting as a micro looper.

• Selectable Tails Bypass: Choose between true bypass or tails mode, allowing echoes to fade naturally when the pedal is off.

• Ultra-Compact Pico Chassis: Tiny footprint (3.65" x 2.0") saves valuable pedalboard real estate.

• Power Supply Included: Comes complete with a 9.6VDC-200mA power adapter.

Technical Specifications:

• Effect Type: Digital Delay

• Circuit: Digital

• Controls: BLEND, DELAY, FEEDBACK, FILTER

• Buttons: TAP DIV (Tap Division)

• Bypass: Buffered Bypass (with Selectable Tails)

• Maximum Delay Time: 3000 ms (3 seconds)

• Input Impedance: 2.2 Megohms

• Output Impedance: 680 Ohms

• Audio: Mono

• Input: 1 x ¼"

• Output: 1 x ¼"

• Power Supply: 9.6VDC-200mA power adapter included (center negative)

• Current Draw: 100mA

• Dimensions (W x D x H): 3.65" x 2.0" x 2.0" (93mm x 51mm x 51mm)

• Country of Origin: USA
