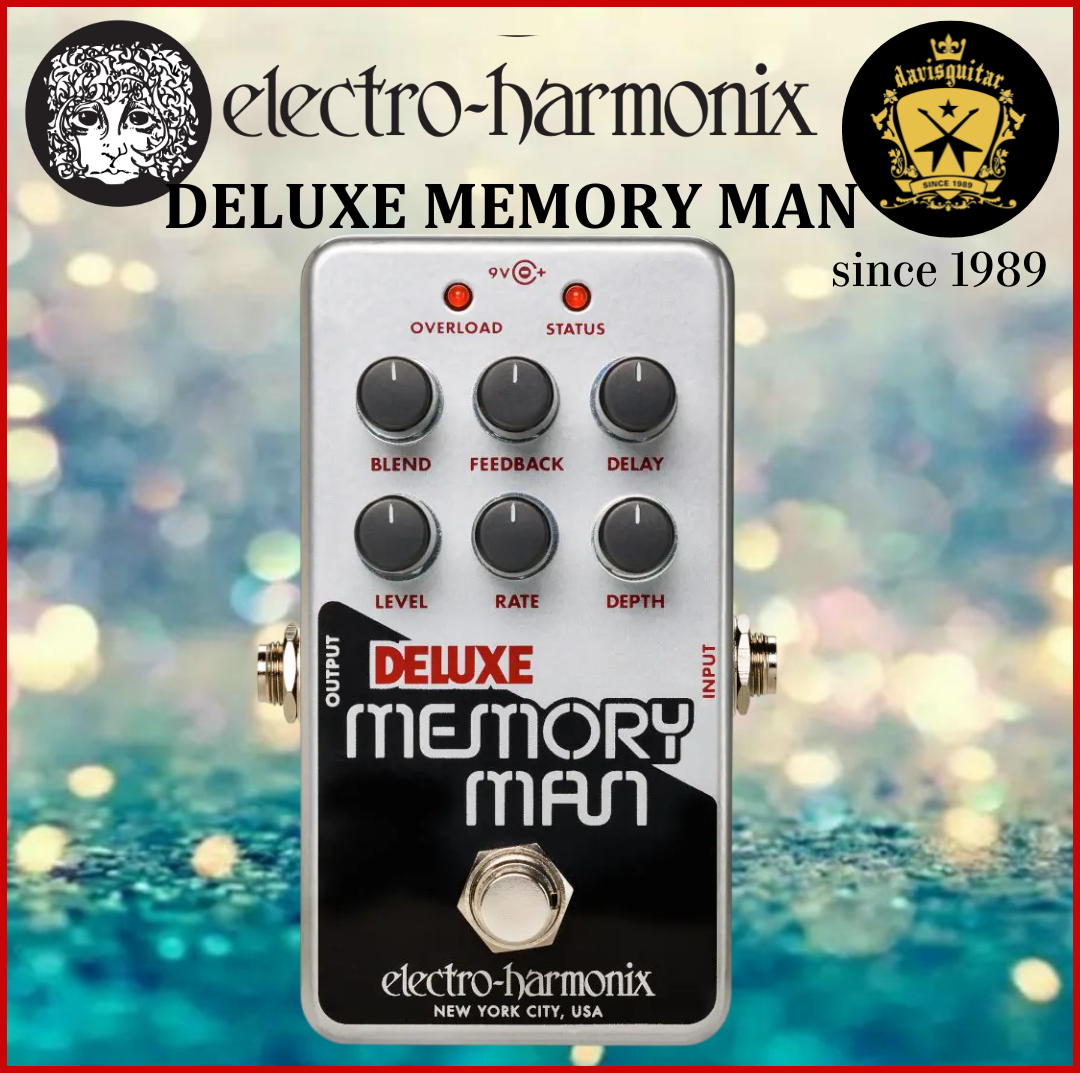

Electro-Harmonix EHX Nano Deluxe Memory Man Analog Delay Chorus Vibrato Pedal

Electro-Harmonix EHX Nano Deluxe Memory Man Analog Delay/Chorus/Vibrato – Legendary Bucket-Brigade Delay in a Compact Chassis | Up to 550ms Delay, Rate & Depth Knobs, Selectable Tails, True Bypass & PSU Included

Description:

Compact version of the classic Deluxe Memory Man featuring gorgeous bucket-brigade delay and modulation.

No one does analog delay and modulation like Electro-Harmonix and the Nano Deluxe Memory Man delivers the unmistakably lush delay, chorus and vibrato of the benchmark large-format Deluxe Memory Man in a compact, pedalboard ready chassis. For over 44 years the Deluxe Memory Man has been the gold standard for analog delay and modulation. Now it's available in an ultra-compact package!

The Nano Deluxe Memory Man delivers EHX's signature analog delay, chorus and vibrato plus some updates we've added including both Rate and Depth knobs for enhanced modulation control. It features a maximum delay time of 550mS, an internal user-accessible switch to turn delay tails on or off, true bypass switching when the tails feature is off and it comes equipped with a standard 9-Volt power supply.

Key Features:

• Rich Analog Delay, Chorus & Vibrato: Delivers the unmistakably lush, warm, and organic bucket-brigade delay and modulation that defined the benchmark large-format Deluxe Memory Man.

• Adjustable Delay Times: Delay control sets delay time from 30mS up to 550mS, offering a wide range from subtle slapback to expansive echoes.

• Full Control Over Echo Repeats: Feedback knob provides full control over the number of echo repeats, right up to runaway oscillation.

• Enhanced Modulation Control: Dedicated Rate and Depth knobs offer precise control over the modulation speed and amount, delivering lush chorus and vibrant vibrato effects.

• Wet/Dry Mix Control: Blend knob allows you to perfectly balance the mix of your dry and delayed signals.

• Adjustable Input Gain: Level knob adjusts the input gain, with an overload LED that lights when the signal going into the analog delay block is too hot.

• Selectable Tails Switch: Internal user-accessible switch sets whether echoes decay naturally when the pedal is bypassed or are instantly muted.

• True Bypass Switching: Provides maximum signal path integrity when the tails feature is off.

• Pedalboard Friendly, Compact, Rugged Enclosure: Road-ready die-cast chassis with a space-saving footprint.

• Power Supply Included: Comes equipped with an Electro-Harmonix 9-Volt power supply.

Technical Specifications:

• Effect Type: Analog Delay / Chorus / Vibrato

• Circuit: Analog

• Bypass: Selectable True Bypass

• Audio: Mono

• Controls: DELAY, FEEDBACK, LEVEL, BLEND, DEPTH, RATE; Internal TAILS Switch

• Delay Time Range: 30ms to 550ms

• Input Impedance: 1 MΩ

• Output Impedance: 300 Ω

• Input: 1 x ¼"

• Output: 1 x ¼"

• Power Supply: 9.6VDC-200mA power adapter included (center negative)

• Current Draw: 150mA

• Unboxed Dimensions (L x W x H): 4.5" x 2.75" x 2.1" (114mm x 70mm x 53mm)

• Unboxed Weight: 1.4 lbs (0.64 kg)

• Country of Origin: USA
