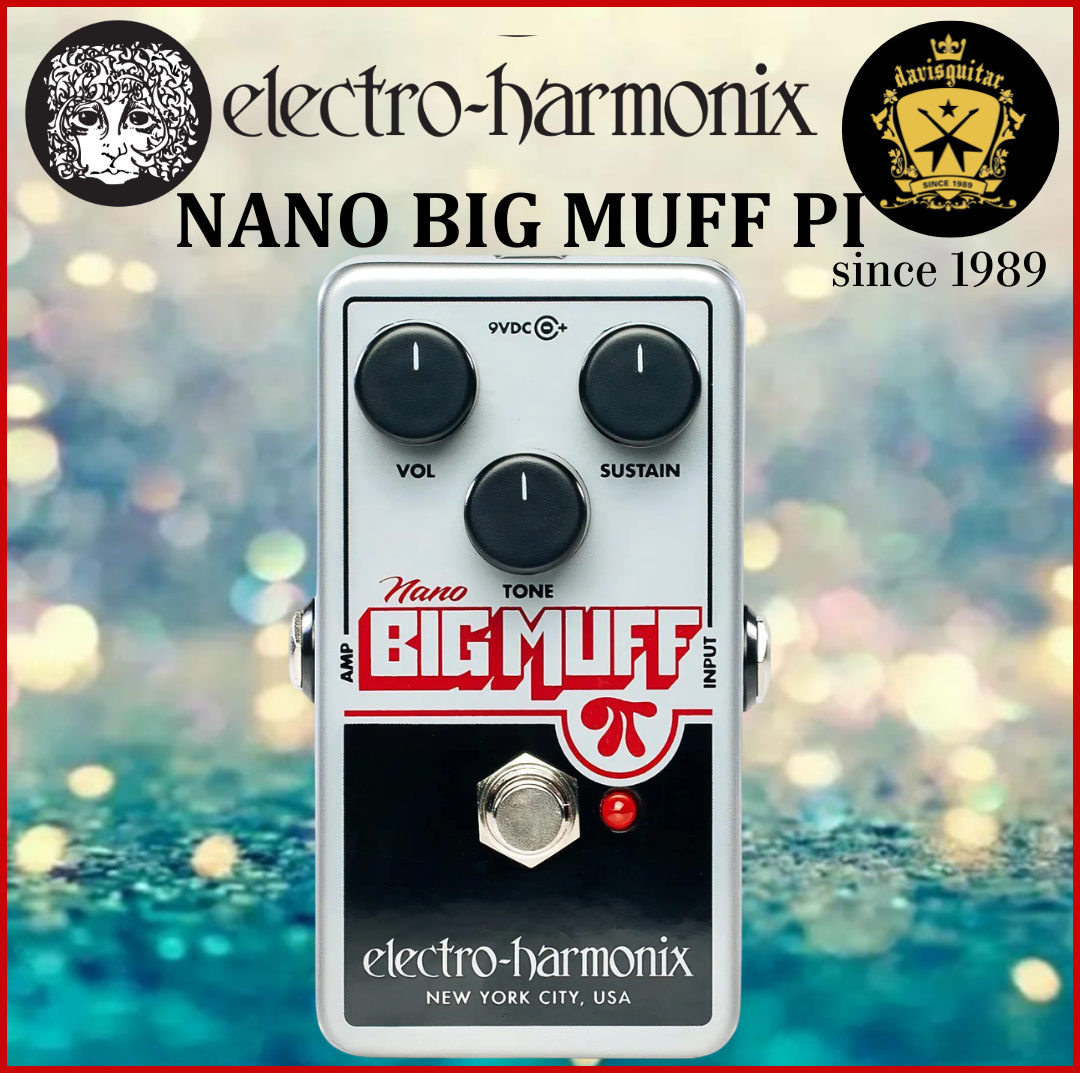

Electro-Harmonix EHX Nano Big Muff PI Guitar Pedal

Electro-Harmonix Nano Big Muff Pi Fuzz/Distortion/Sustainer – Legendary NYC Big Muff Tone in a Compact Nano Enclosure | True Bypass | 3 Controls | 9V Battery Included

Description:

The Legendary Big Muff. Now in a Compact Nano Enclosure.

The EHX Nano Big Muff Pi delivers the legendary, iconic sound that has defined rock music for decades—now in a compact, pedalboard-friendly format. EHX took the classic NYC Big Muff Pi circuit and simply shrunk it, preserving every ounce of its rich, creamy, violin-like sustain and crushing distortion. From Jimi Hendrix and Santana to Pink Floyd and countless others, the Big Muff Pi has been a staple of rock since the 1970s.

The Nano Big Muff Pi delivers the exact same sound as the full-size original, but in a rugged, road-ready nano enclosure that saves precious pedalboard space. The intuitive three-knob interface lets you dial in everything from warm, wooly rhythm tones to biting, aggressive lead sounds. With true bypass switching and a 9V battery included, this pedal is ready to plug in and play right out of the box.

Key Features:

• Legendary Big Muff Circuit: Identical in every way to the classic NYC Big Muff Pi, delivering the same rich, creamy, violin-like sustain and crushing distortion.

• Compact Nano Enclosure: All the legendary tone in a rugged, space-saving design—perfect for any pedalboard.

• SUSTAIN Control: Adjusts the amount of sustain and distortion—from subtle breakup to massive, singing sustain.

• TONE Control: Sweeps from warm, wooly rhythm tones with deep bass to biting, cutting lead tones with high treble.

• VOLUME Control: Sets the overall output level for balanced integration with your rig.

• True Bypass: Preserves your signal integrity with maximum transparency when the pedal is disengaged.

• Status LED: Lights up when the effect is active—clear visual feedback for on/off status.

• 9V Battery Included: Ready to play straight out of the box.

• Versatile Application: Works equally well with electric guitar or bass.

Technical Specifications:

• Effect Type: Fuzz / Distortion / Sustainer

• Circuit: Analog

• Controls: SUSTAIN, TONE, VOLUME

• Bypass: True Bypass

• Audio: Mono

• Input Impedance: 130 kΩ

• Input Jack: 1 x ¼"

• Output Jack: 1 x ¼" (AMP)

• Power Supply: 9V battery included, or optional 9VDC AC Adapter (center negative, at least 25mA), such as the EHX9.6DC-200

• Current Draw: Approximately 3mA at 9VDC

• Dimensions (W x L x H): 2.75" x 4.5" x 2.1" (70mm x 115mm x 54mm)

• Country of Origin: USA
