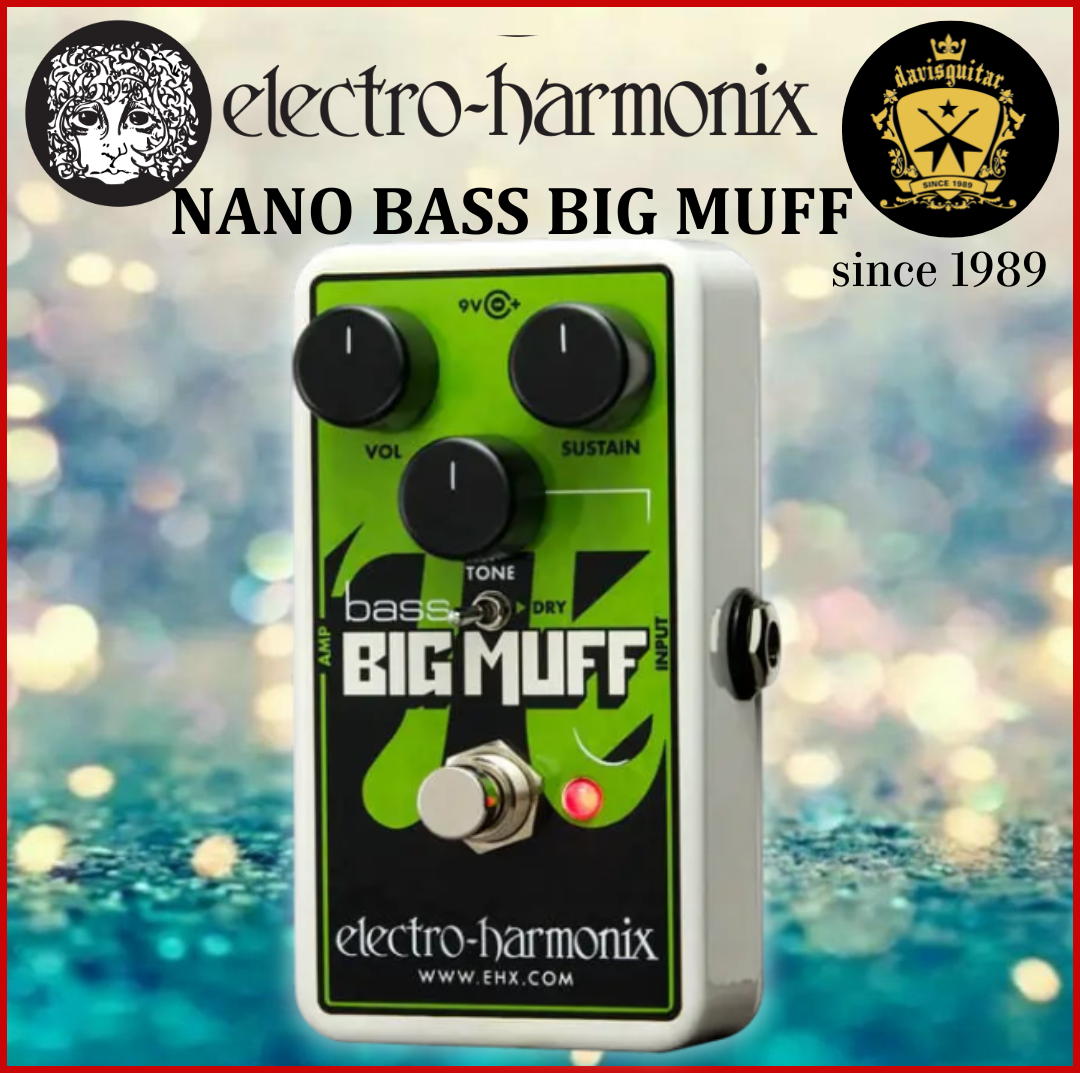

Electro-Harmonix EHX Nano Bass Big Muff Pi Fuzz/Distortion/Sustainer Guitar Effect Pedal

Electro-Harmonix EHX Nano Bass Big Muff Pi Fuzz/Distortion/Sustainer – Russian-Inspired Bass Tone | Dry Switch for Low-End Clarity | True Bypass | Nano Enclosure

Description:

Iconic Muff Sound. Engineered for Bass.

The EHX Nano Bass Big Muff Pi delivers the legendary, crushing fuzz and sustain of the classic Big Muff—now voiced specifically for bass and housed in a compact, pedalboard-friendly nano enclosure. With voicing inspired by the legendary tank-green Russian Big Muff, this pedal produces everything from a warm, gritty growl to an over-the-top wall of bass fuzz.

The intuitive three-knob interface—Sustain, Tone, and Volume—lets you dial in your perfect sound. The Sustain knob adjusts the amount of harmonic distortion and sustain, while the Tone knob sweeps from warm, wooly rhythms to biting, cutting leads. The Volume knob controls your overall output level.

What truly sets this pedal apart for bassists is the Dry switch. When engaged, it blends your dry, unprocessed bass signal at unity level with the pedal's distorted signal. This innovative feature ensures you never lose your low-end punch and articulation, even with the fuzz cranked. Housed in a rugged, roadworthy die-cast chassis with true bypass switching, the Nano Bass Big Muff Pi is the ultimate bass fuzz pedal for players who demand massive tone without sacrificing clarity.

Key Features:

• Russian-Inspired Bass Voicing: Patterned after the legendary tank-green Russian Big Muff, delivering massive, aggressive fuzz tailored for bass.

• Classic Big Muff Controls: Sustain, Tone, and Volume knobs for intuitive sound shaping—from warm growl to paint-peeling fuzz.

• Dry Switch: Blends your dry bass signal at unity level with the pedal's distortion, preserving low-end clarity and articulation.

• True Bypass Switching: Preserves your signal integrity with maximum transparency when the pedal is disengaged.

• Compact Nano Enclosure: All the legendary tone in a rugged, space-saving design that fits easily on any pedalboard.

• 9V Battery Included: Ready to play straight out of the box.

• Versatile Performance: Works equally well with active and passive basses, delivering consistent tone across any instrument.

Technical Specifications:

• Effect Type: Fuzz / Distortion / Sustainer (for Bass)

• Circuit: Analog

• Controls: SUSTAIN, TONE, VOLUME

• Switch: DRY (blends dry signal with distortion)

• Bypass: True Bypass

• Input Impedance: 130 kΩ

• Input Jack: 1 x ¼"

• Output Jack: 1 x ¼" (AMP)

• Power Supply: 9V battery included, or optional 9VDC AC Adapter (center negative, at least 25mA), such as the EHX9.6DC-200

• Current Draw: Approximately 4mA at 9VDC

• Dimensions (W x L x H): 2.75" x 4.5" x 2.1" (70mm x 115mm x 54mm)

• Country of Origin: USA
