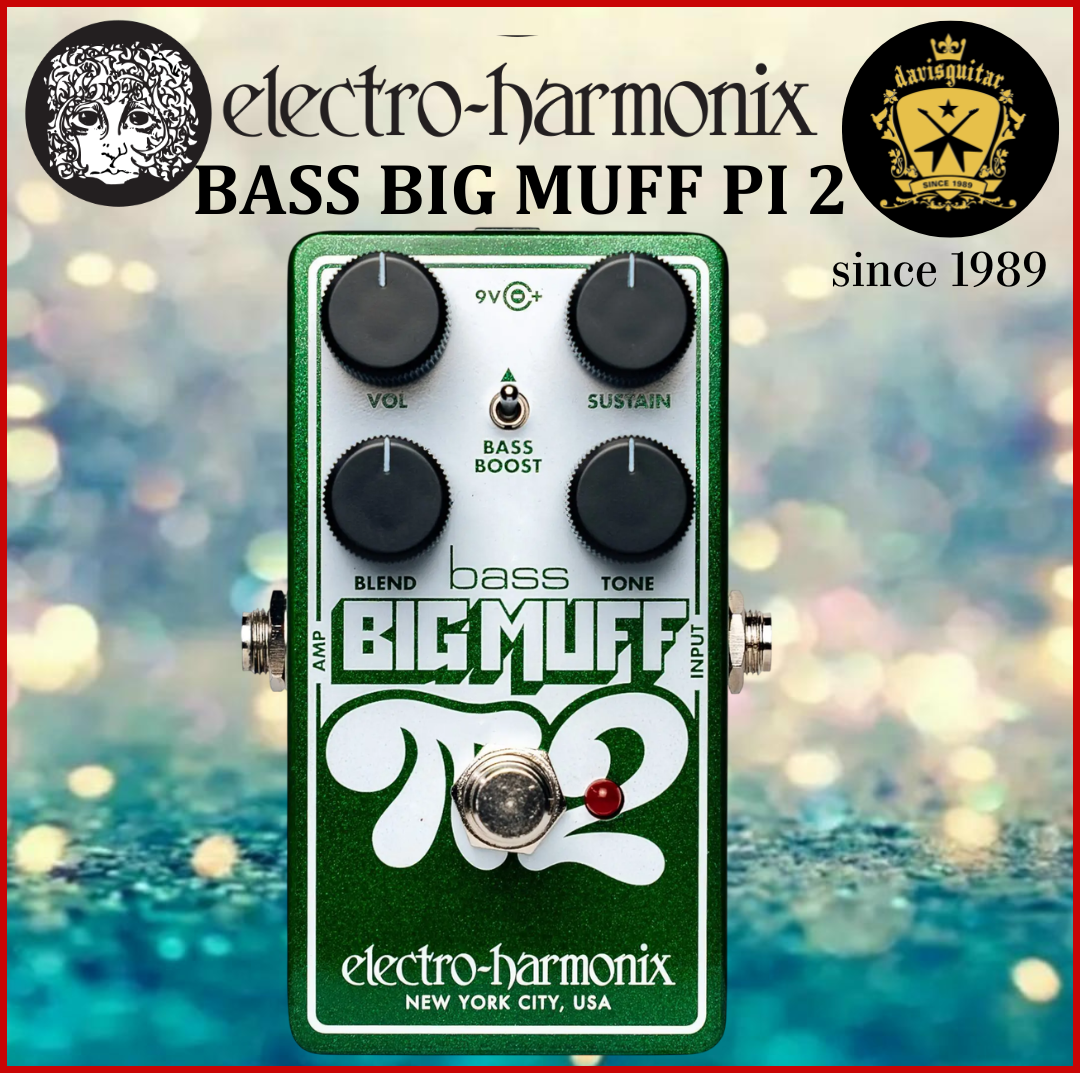

Electro-Harmonix EHX Nano Bass Big Muff Pi 2 Fuzz Distortion Sustainer

Electro-Harmonix EHX Nano Bass Big Muff Pi 2 Fuzz/Distortion/Sustainer – Dual Op-Amp Circuit | BLEND Control & BASS BOOST | True Bypass with Momentary/Latching Footswitch | Made in USA

Description:

The Lost Op-Amp Fuzz. Rediscovered. Reimagined for Bass.

The Electro-Harmonix Nano Bass Big Muff Pi 2 resurrects a long-lost dual op-amp fuzz circuit from the 1970s—a design that never made it to production until now. Rediscovered as a hand-drawn schematic among the notes of Big Muff co-creator Bob Myer and brought to life in collaboration with Josh Scott of JHS Pedals, this pedal delivers a unique fuzz tone that stands apart from its Big Muff siblings.

Optimized specifically for bass players, the Nano Bass Big Muff Pi 2 delivers the signature midrange grind, flexible EQ, and virtually endless sustain expected from any Big Muff. The Bass version adds a BLEND knob and BASS BOOST switch to the classic VOL, SUSTAIN, and TONE control set. The BLEND knob lets you mix your dry, unprocessed bass signal with the fuzz, ensuring you never lose clarity or foundational low-end. Flip the BASS BOOST switch to add even more low-end heft, especially effective when running the TONE knob at higher, more trebly settings.

The Nano Bass Big Muff Pi 2 features a true bypass footswitch with Latching/Momentary Action. Click for normal latching on/off functionality, or press and hold for a momentary burst of fuzz mayhem. Housed in a rugged, compact nano enclosure with a 9V battery included, this pedal is ready to deliver thick, powerful fuzz while keeping your low-end presence intact.

Key Features:

• Lost 1970s Op-Amp Circuit: Unique Big Muff Pi circuit design employing 2 Dual Op-Amps, resurrected from Bob Myer's original schematics and refined in collaboration with Josh Scott of JHS Pedals.

• Optimized for Bass: Added features specifically designed for extended low-end response and bass performance.

• BLEND Control: Mixes your dry signal with the fuzz to preserve clarity, attack, and foundational low-end.

• BASS BOOST Switch: Adds more overall low-end to your signal—especially effective at higher Tone settings.

• Classic Big Muff Controls: VOL, TONE, and SUSTAIN knobs for flexible shaping of fuzz intensity and character.

• True Bypass: Mechanical relay true bypass on a soft footswitch preserves your signal integrity when disengaged.

• Latching/Momentary Footswitch: Click for normal latching on/off, or press and hold for a temporary burst of fuzz.

• Compact Nano Enclosure: Rugged, space-saving design (4.5" x 2.75" x 2.1") fits easily on any pedalboard.

• 9V Battery Included: Ready to play straight out of the box; also accepts optional 9.6VDC-200mA power adapter.

• Made in USA: Proudly manufactured by Electro-Harmonix in the United States.

Technical Specifications:

• Effect Type: Bass Fuzz / Distortion / Sustainer

• Circuit: Analog

• Controls: VOL, TONE, SUSTAIN, BLEND

• Switch: BASS BOOST

• Bypass: True Bypass (Mechanical Relay)

• Footswitch: Latching / Momentary Action

• Input Impedance: 2.2 MΩ

• Output Impedance: 270 Ω

• Audio: Mono

• Current Draw: 20mA at 9VDC

• Power Supply: 9V battery included; optional 9.6VDC-200mA power adapter (sold separately)

• Dimensions (W x L x H): 2.75" x 4.5" x 2.1" (70mm x 114mm x 53mm)

• Weight: 340g (0.75 lbs)

• Country of Origin: USA

• Year Released: 2026
