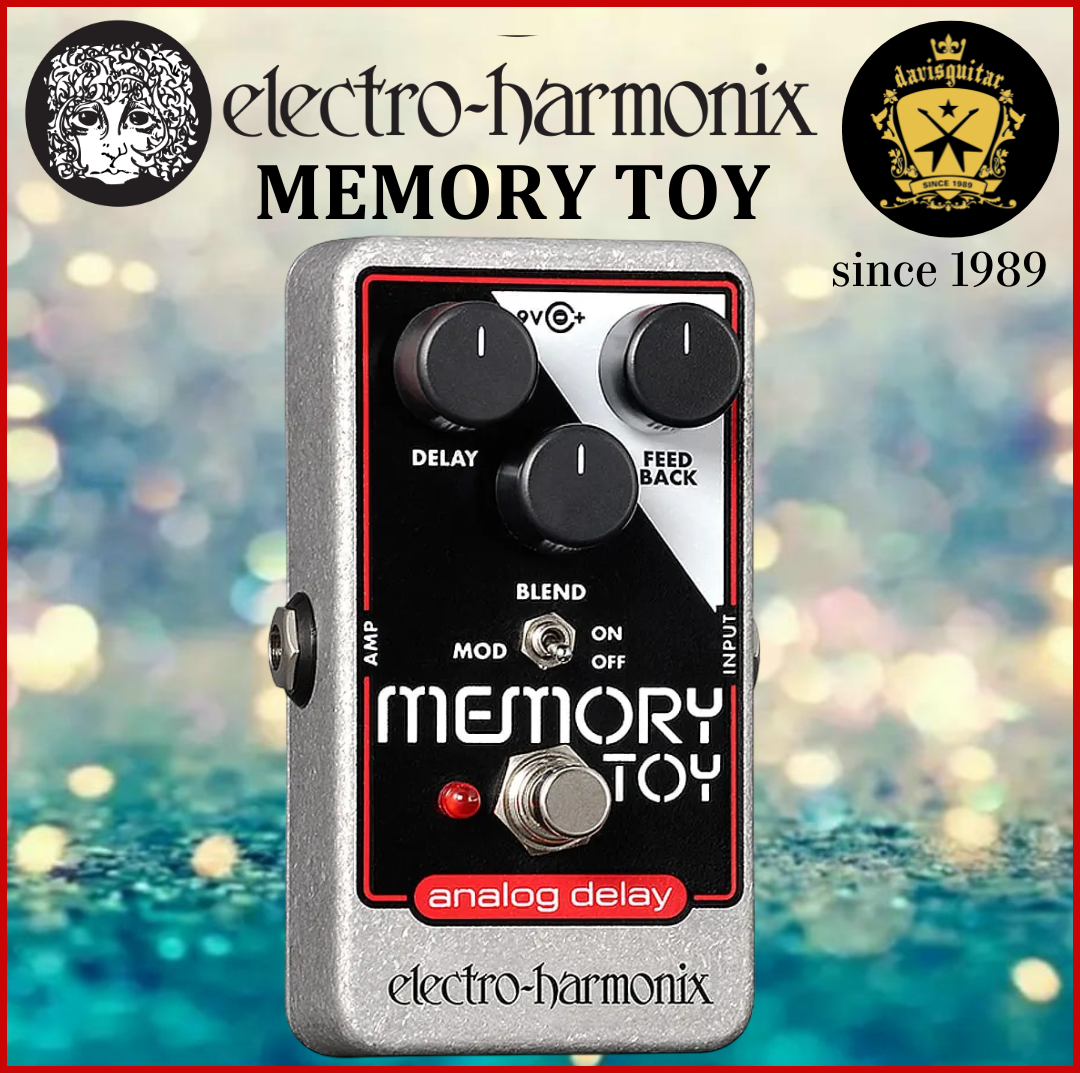

Electro-Harmonix EHX Memory Toy Analog Delay with Chorus Guitar Effect Pedal

Electro-Harmonix Memory Toy Analog Delay – Up to 550ms Delay | Switchable Modulation | True Bypass | Vintage Echo & Chorus in a Compact Pedal

Description:

Vintage Analog Delay. Legendary Heritage. Compact Size.

The Electro-Harmonix Memory Toy is a compact analog delay pedal that draws its heritage from the iconic 1970s Memory Man and the legendary Deluxe Memory Man. It delivers the lush, organic echo and rich modulation that guitarists crave, all in a pedalboard-friendly Nano enclosure. From subtle slapback to spiraling analog chaos, the Memory Toy offers up to 550ms of warm, vintage-style delay.

The intuitive control set makes shaping your sound simple. The DELAY knob adjusts the delay time from 30ms to 550ms. The BLEND control mixes your dry and delayed signals from 100% dry to 100% wet. The FEEDBACK knob increases the number of repeats—at high settings, the pedal will self-oscillate for experimental textures, and with short delay times, it can even produce a reverb-like effect.

For added depth, the MOD switch enables a slow modulation on the delay time, similar to the lush chorus of the Deluxe Memory Man. Housed in a rugged die-cast chassis with true bypass switching, the Memory Toy is a professional tool that bathes your axe with organic depth and dimension. It's the perfect gateway into the world of analog delay.

Key Features:

• All-Analog Delay: Delivers the warm, organic, and characterful repeats that only an analog bucket-brigade circuit can provide.

• Up to 550ms Delay Time: Offers a versatile range from tight slapback to lush, atmospheric echoes.

• BLEND Control: Mixes direct and delayed signals from 100% dry to 100% wet for ultimate control.

• FEEDBACK Control: Increases the number of repeats; at high settings, the pedal self-oscillates for creative sound design.

• Switchable Modulation: The MOD switch enables a slow, lush chorus-like modulation on the delay time, inspired by the legendary Deluxe Memory Man.

• True Bypass Switching: Preserves your signal integrity with maximum transparency when the pedal is disengaged.

• Compact Nano Enclosure: Rugged, space-saving design that fits easily on any pedalboard.

• 9V Battery Included: Ready to play straight out of the box.

• Heritage Design: Based on the legendary 1970s Memory Man and Deluxe Memory Man circuits.

Technical Specifications:

• Effect Type: Analog Delay with Modulation

• Circuit: Analog

• Controls: DELAY, BLEND, FEEDBACK

• Switch: MOD (On/Off)

• Delay Time Range: 30ms to 550ms

• Bypass: True Bypass

• Input Impedance: 1 MΩ

• Input Jack: 1 x ¼"

• Output Jack: 1 x ¼" (AMP)

• Power Supply: 9V battery included; optional 9VDC AC Adapter (center negative, 200mA minimum)

• Current Draw: 33 mA at 9VDC

• Dimensions (W x L x H): 2.75" x 4.5" x 2.1" (70mm x 115mm x 54mm)

• Weight: 0.55 lbs (0.25 kg)
