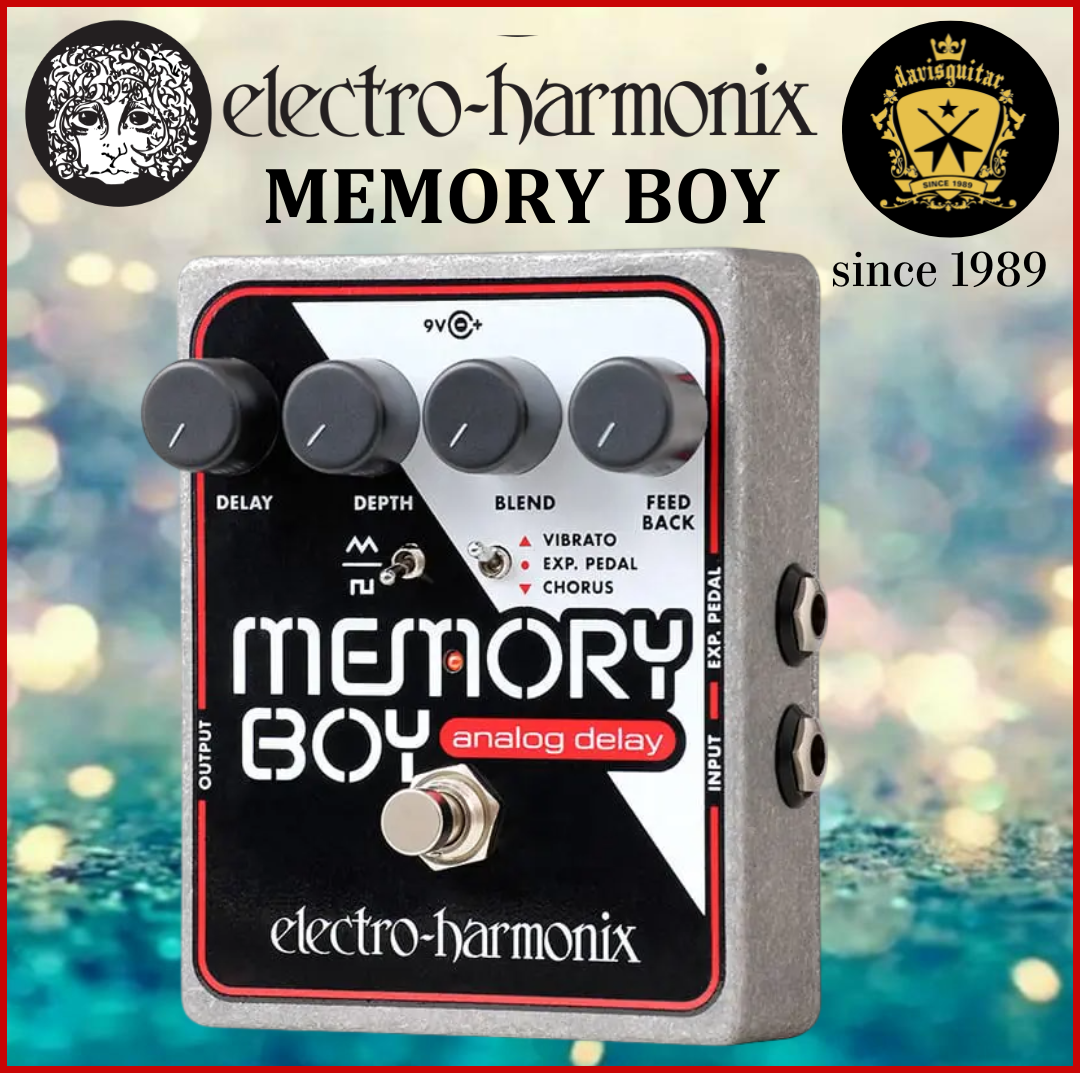

Electro-Harmonix EHX Memory Boy Analog Delay with Chorus & Vibrato Guitar Pedal

Electro-Harmonix Memory Boy Analog Delay – All-Analog Bucket-Brigade Delay | 550ms Delay Time | Selectable Chorus/Vibrato | Triangle or Square Modulation | Expression Pedal Input | True Bypass | Power Supply Included

Description:

Legendary Analog Heritage. Modern Affordability. Endless Sonic Exploration.

The Electro-Harmonix Memory Boy is an all-analog delay pedal that carries the performance heritage of the legendary Memory Man. It delivers the warm, organic repeats that have defined countless classic recordings, now in a more compact and affordable package. The result of two years of research and development using refined analog integrated circuits, the Memory Boy expands upon the Deluxe Memory Man with additional modulation features, offering a staggering array of lush, textural sounds.

From subtle slapback and spiraling analog chaos to spine-tingling vibrato and rich chorus, the Memory Boy provides a vast palette of tones. Its intuitive control set—DELAY, BLEND, FEEDBACK, and DEPTH—makes shaping your sound simple and immediate. The three-way toggle switch lets you select between Chorus or Vibrato modulation rates or use the Expression Pedal input, and you can choose between triangle or square modulation waveforms for further tonal variation. The BLEND control allows you to go from 100% dry to 100% wet, offering unparalleled creative flexibility. Housed in a rugged, pedalboard-friendly chassis with true bypass switching and including a 9.6VDC-200mA power adapter, the Memory Boy is the ultimate tool for guitarists and bassists seeking high-quality analog delay and modulation.

Key Features:

• All-Analog Delay: Warm, organic repeats with the distinct character of bucket-brigade analog circuitry.

• Up to 550ms Delay Time: Versatile delay range from tight slapback to lush, atmospheric echoes.

• Selectable Chorus or Vibrato: A three-way toggle switch adds lush, rich modulation effects to your delay.

• Triangle or Square Modulation Waveforms: Choose between smooth, sweeping modulation or more aggressive, choppy textures.

• Expression Pedal Input: Allows external control over Delay Time or Modulation Rate for real-time, hands-free creativity.

• Intuitive Control Set: Knobs for DELAY, BLEND, FEEDBACK, and DEPTH give you precise command over your sound.

• True Bypass Switching: Preserves your signal integrity with maximum transparency when the pedal is disengaged.

• Compact & Pedalboard-Friendly: Rugged, space-saving design maximizes pedalboard real estate.

• Power Adapter Included: Comes complete with a 9.6VDC-200mA power adapter.

Technical Specifications:

• Effect Type: Analog Delay with Chorus & Vibrato

• Circuit: Analog

• Controls: DELAY, BLEND, FEEDBACK, DEPTH

• Switch: 3-way toggle (Chorus/Vibrato/Expression)

• Modulation Waveforms: Triangle or Square

• Max Delay Time: 550ms

• Bypass: True Bypass

• Audio: Mono

• Input: 1 x ¼" (instrument)

• Output: 1 x ¼" (effect out)

• Other I/O: 1 x ¼" (expression pedal)

• Current Draw: 60mA at 9VDC

• Power Supply: 9.6VDC-200mA power adapter included (center negative)

• Dimensions (Unboxed W x D x H): 4" x 4.75" x 2.25" (102mm x 121mm x 57mm)

• Weight (Unboxed): 1 lb (0.45 kg)

• Country of Origin: USA
