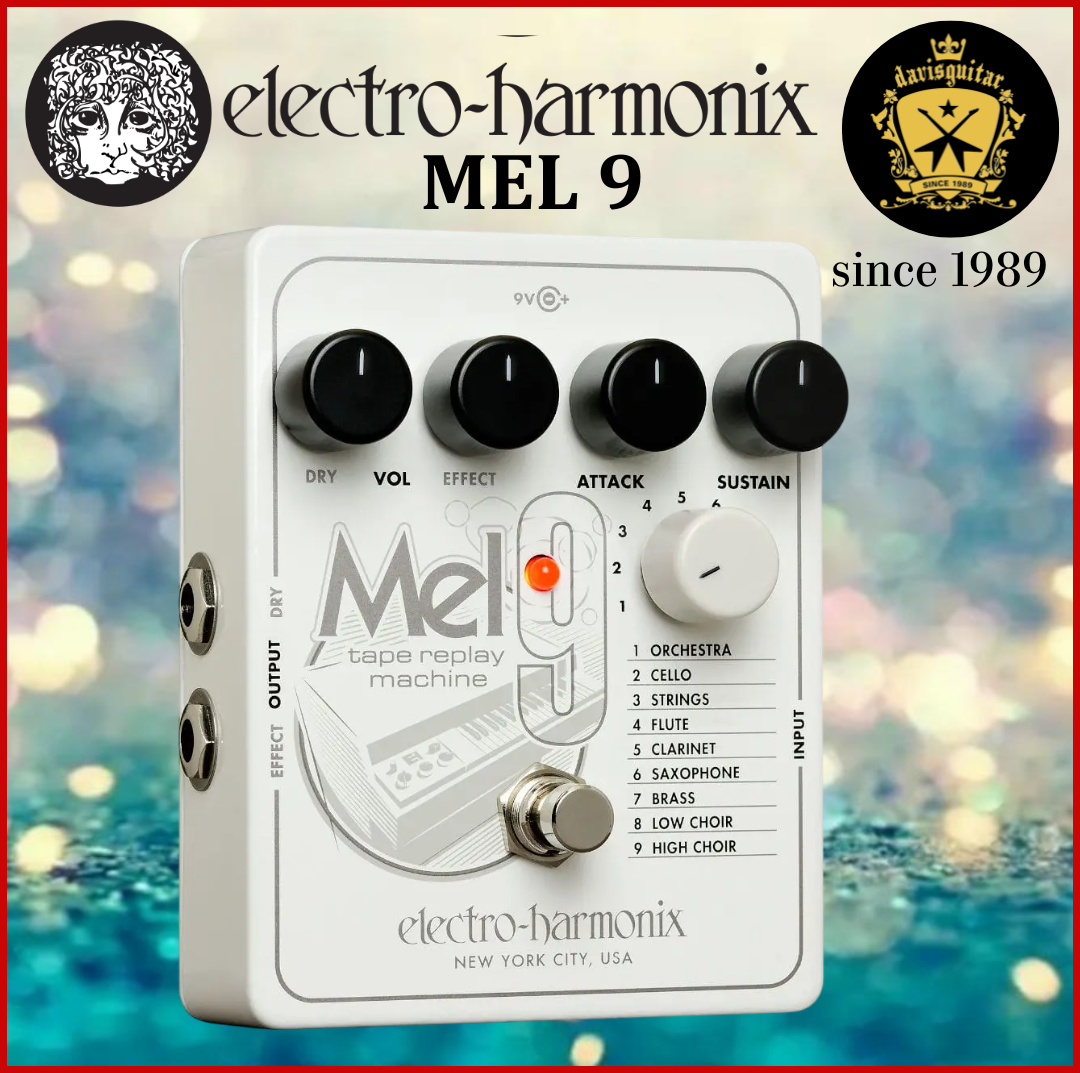

Electro-Harmonix EHX MEL9 Tape Replay Machine Guitar Effect Pedal

Electro-Harmonix EHX MEL9 Tape Replay Machine – Authentic Mellotron® Emulation | 9 Classic Sounds, Polyphonic Tracking, Attack & Sustain Controls, Dry/Effect Outputs & PSU Included

Description:

Transform your axe and resurrect the sound of vintage tape-based keyboards!

Now any electric guitar player can have access to nine magically quirky, dark and unique Mellotron® sounds. No more extra devices such as special and cumbersome 13-pin MIDI pickups! In addition to electric guitar, you can trigger the MEL9 with any instrument that produces an electrical output, such as a keyboard or a bass, down to 55 Hz or A1.

The polyphonic EHX MEL9 has superior tracking; you can create single notes or chords with ease. The MEL9 will follow guitar bends, dive bombs, slurs, and any other guitar expression/performance techniques you can throw at it!

Key Features:

• 9 Classic Mellotron® Sounds: Orchestra, Cello, Strings, Flute, Clarinet, Saxophone, Brass, Low Choir and High Choir

• Works on Guitar Without Modifications: No special pickups, MIDI implementation or instrument modifications required

• Tracks Bends, Slides & Dive Bombs: Follows guitar expression and performance techniques with ease

• Versatile Instrument Compatibility: Also works with bass guitar down to the open A string and keyboards within the limits of its polyphony (5 notes) and range (A1 to A5)

• Independent Effect & Dry Volume Controls: Create the perfect mix at the Effects output

• Dry Output Jack: Outputs your input signal at unity gain for flexible routing

• Attack Control: Sets the volume swell speed—turn clockwise for notes to fade in more gradually

• Sustain Control: Adjusts the release time after a sound is stopped—turn clockwise for longer fade out

• True Bypass Switching: Ensures maximum signal path integrity when the pedal is disengaged

• Power Adapter Included: Comes complete with a standard EHX 9.6VDC-200mA power supply

Technical Specifications:

• Effect Type: Mellotron® Emulator / Tape Replay Machine

• Circuit: Digital

• Bypass: True Bypass

• Audio: Mono

• Controls: Attack, Sustain, Effect Volume, Dry Volume, Mode Selector

• Inputs: 1 x ¼"

• Outputs: 2 x ¼" (Effect, Dry)

• Power Supply: 9.6VDC-200mA power adapter included (center negative)

• Current Draw: 100mA @ 9VDC

• Unboxed Dimensions (W x L x H): 4.0" x 4.75" x 2.25" (102mm x 121mm x 58mm)

• Unboxed Weight: 1.6 lbs

• Country of Origin: USA
