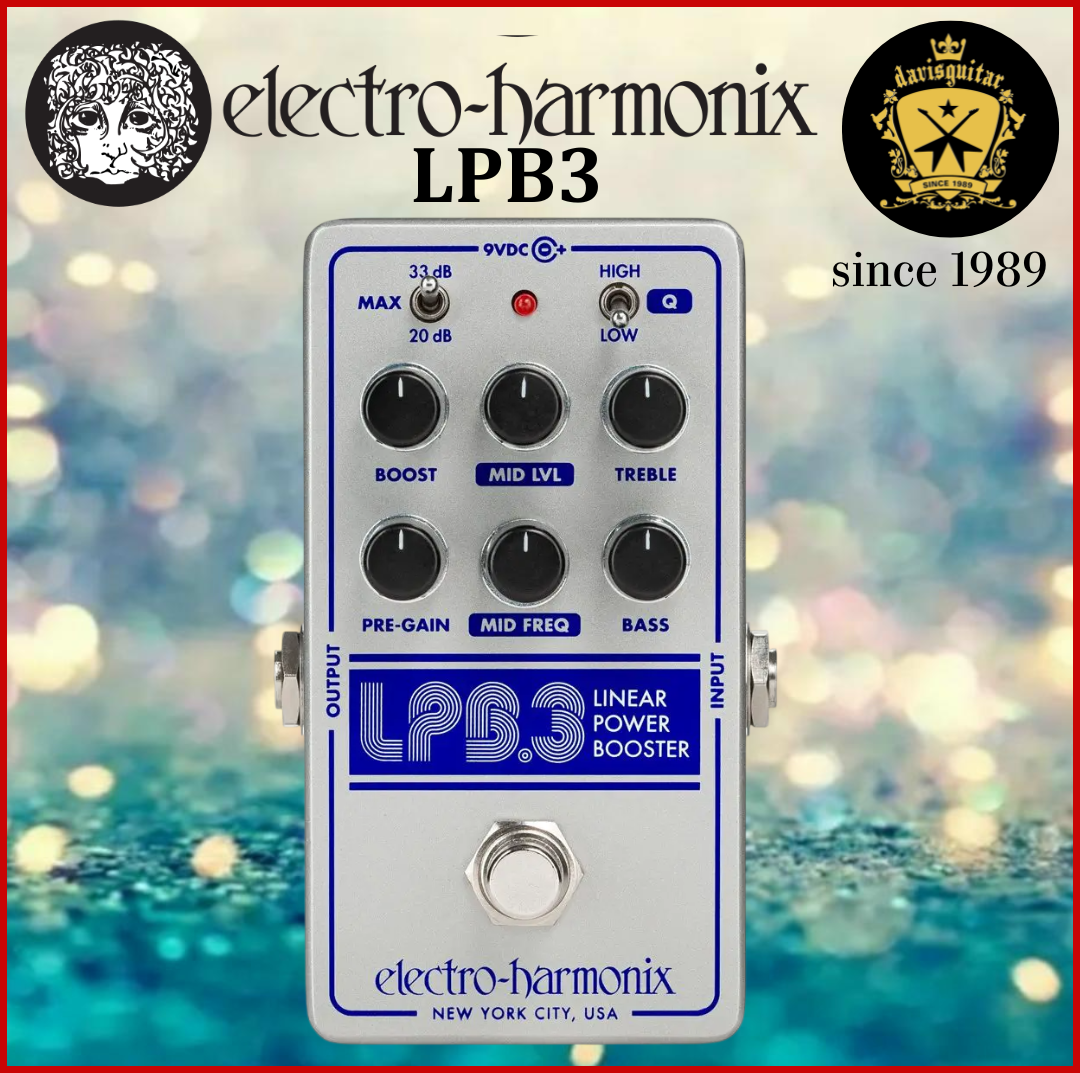

Electro-Harmonix EHX LPB-3 Linear Power Booster EQ Guitar Effect Pedal

Electro-Harmonix EHX LPB-3 Linear Power Booster & EQ – Up to 33dB Clean Boost | Active 3-Band EQ with Parametric Mids | Selectable True/Buffered Bypass | 9V Battery Included

Description:

Sculpt your tone to any shape with the LPB-3!

The effect that launched Electro-Harmonix gets a makeover with the Electro-Harmonix LPB-3 Linear Power Booster & EQ. With an active EQ featuring a powerful Parametric Mids control and up to a walloping 33dB of boost, the LPB-3 is the perfect tool for any tone tailoring task. Boost your sound into saturated bliss with transformative precision like never before.

Housed in EHX's Nano-sized chassis, the LPB-3 is capable of boosting up to +33dB of clean gain with the powerful tone shaping of a 3-band EQ with parametric Mids. The active 3-Band EQ features TREBLE and BASS knobs to control the highs and lows plus a powerful parametric Mids control with adjustable MID FREQ and Q. BOOST sets the overall output of the pedal with the MAX switch toggling between 20dB and 33dB of maximum boost. Use the PRE-GAIN knob to fine-tune the total gain and volume of the boost.

This booster pedal's additional features include selectable Buffered/True Bypass switching and internally extended 30V power rails for enhanced headroom.

Key Features:

• Active 3-Band EQ: Precision tone sculpting with TREBLE, BASS, and parametric MIDS controls for ultimate flexibility

• Parametric MIDS Section: Adjustable MID FREQ and Q controls let you cut through any mix with surgical precision

• Up to 33dB of Boosting Power: Selectable 20dB or 33dB maximum boost via the MAX switch

• PRE-GAIN Knob: Fine-tunes the total gain and volume of the boost

• BOOST Knob: Sets the overall output level of the pedal

• High Voltage Rails (30V): Internally extended power rails provide enhanced headroom for clean, transparent boost

• Selectable Buffered/True Bypass: Choose between Buffered Bypass for signal integrity or True Bypass for maximum transparency

• Inspired by the Original LPB-1: The effect that launched Electro-Harmonix in 1968 gets a modern makeover

• Compact Nano Chassis: Rugged, space-saving design fits easily on any pedalboard

• 9V Battery Included: Ready to play straight out of the box

Technical Specifications:

• Effect Type: Linear Power Booster / EQ

• Circuit: Analog

• Controls: PRE-GAIN, BOOST, BASS, TREBLE, MID FREQ, Q

• Switches: MAX (20dB/33dB), BYPASS MODE (Buffered/True)

• Bypass: Selectable Buffered or True Bypass

• Audio: Mono

• Input Impedance: 2.2 MΩ

• Output Impedance: 680 Ω

• Input: 1 x ¼"

• Output: 1 x ¼"

• Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included, center negative)

• Current Draw: 24mA @ 9VDC

• Unboxed Dimensions (W x L x H): 2.75" x 4.5" x 2.1" (70mm x 115mm x 54mm)

• Shipping Weight: 1.2 lbs

• Country of Origin: USA

• UPC: 683274012247
