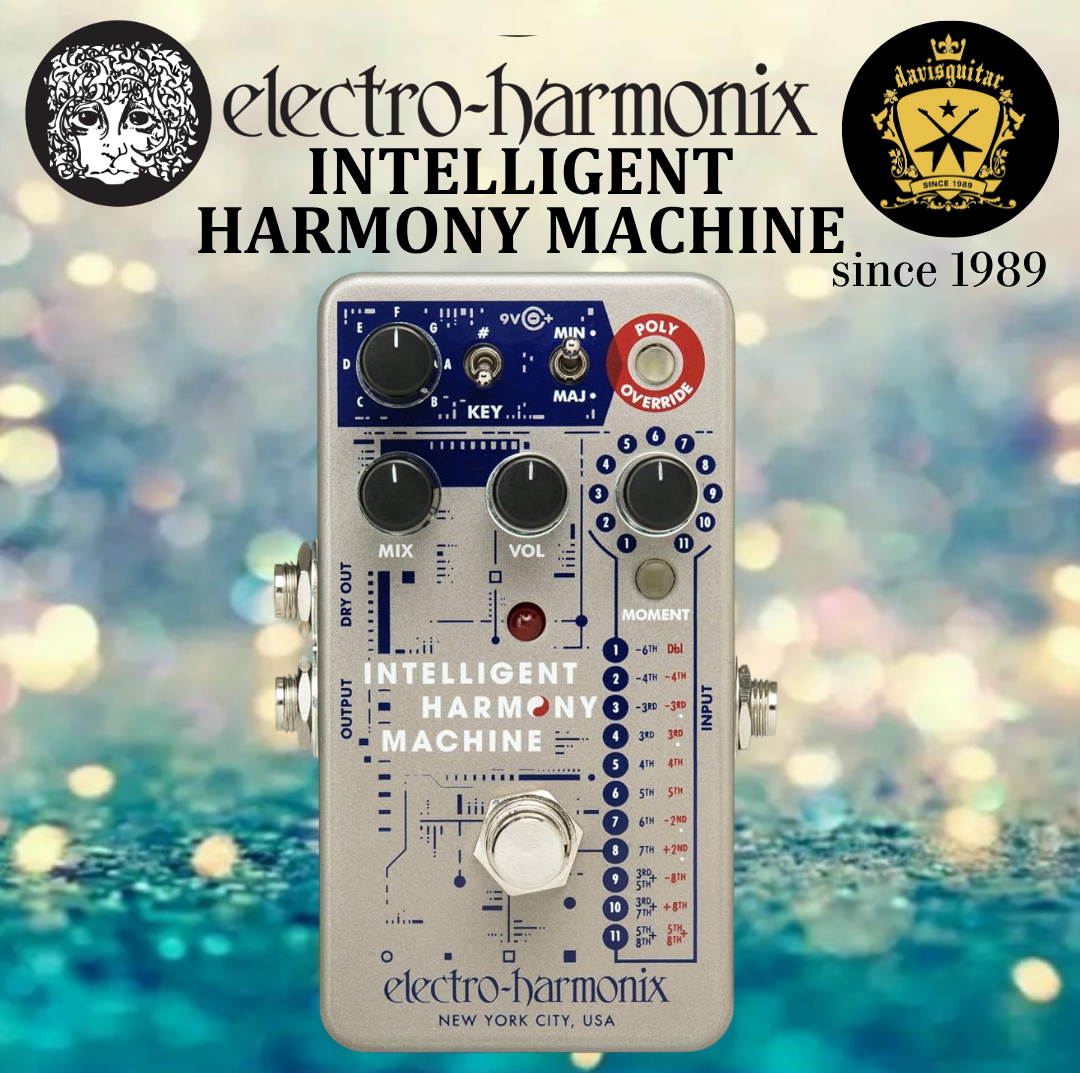

Electro-Harmonix Intelligent Harmony Machine – Harmonizer / Pitch Shifter
Overview
The EHX Intelligent Harmony Machine instantly creates matching harmonies to what you play. It’s like having one—or even two—guitarists jamming with you at the same time and always in perfect sync. The Intelligent Harmony Machine opens a door to the music of great multi-lead guitar bands and multi-part harmonized solos. Plus, its ability to apply harmonies ranging from simple to sophisticated will totally transform what you play. Of course, it also boasts EHX’s renowned impeccable tracking and genuine musical tone.
EHX Founder, Mike Matthews says: “We designed the Intelligent Harmony Machine for the player who craves maximum power, but in a minimal footprint. You’ll dig its sweet, musical tone and spotless tracking!”
Why Choose the Intelligent Harmony Machine?
-
Intelligent Harmony Mode: Select your key, and the pedal generates single-note, diatonic harmonies based on what you play. You have access to all 12 keys via the Key Selector, and a Major/Minor switch lets you choose whether 2nds and 3rds will be major or minor.
-
Polyphonic Override Mode: This mode performs perfect polyphonic pitch shifts, meaning the pitch shifts you dial up are applied to full chords as well as single notes.
-
Momentary Mode: Instantly change pitch by simply depressing the pedal’s footswitch. The pitch shift is engaged as long as you hold down the switch. You can even set a custom sweep time between the dry and effect signal for dynamic, expressive transitions.
-
Impeccable Tracking & Tone: Delivers flawless tracking and superb, musical tone across all modes.
-
Flexible Routing: A Mix control sets the blend between your dry and shifted signals, and a dedicated Dry output adds extensive signal routing options for complex rigs.
Intelligent Harmony Mode Selections
In Intelligent Harmony Mode, you can choose from a huge range of single-note, diatonic harmonies, including both two- and three-part harmonies:
Extra Multi-Harmony Options: Selections 9, 10, and 11 also feature optional alternative harmony choices. These include: 4th Down + 3rd Up, 3rd Up + 6th Up, Octave Down + 5th Up, 6th Down + 4th Down, 3rd Down + 3rd Up, and Octave Down + 4th Down.
Polyphonic Override Mode Selections
When you want to pitch-shift chords, use Polyphonic Override Mode with these 11 interval selections:
-
Doubler
-
Perfect 4th Down
-
3rd Down (minor on major)
-
3rd Up (minor or major)
-
Perfect 4th Up
-
Perfect 5th Up
-
2nd Down (minor or major)
-
2nd Up (minor or major)
-
Octave Down
-
Octave Up
-
Perfect 5th Up + Octave Up
Key Features
-
Compact harmony generating and pitch-shifting powerhouse
-
Impeccable tracking and superb musical tone
-
Two distinct modes: Intelligent Harmony and Polyphonic
-
Key Selector and #/- switches provide access to all 12 keys
-
11-position Interval Selector switch
-
Momentary Mode allows the effect to be active only when the footswitch is depressed
-
Choose from instant shifts or set the time it takes for the signal to sweep up and down
-
Mix control sets the blend between your dry and shifted signals
-
Dry output adds signal routing and control options
-
Power supply included (can also run on a 9V battery)
Specifications
-
Brand: Electro-Harmonix
-
Model: Intelligent Harmony Machine
-
Effect Type: Harmonizer / Pitch Shifter
-
Controls: Mix, Key Selector, #/-, 11-position Interval Selector
-
Switches: Intelligent Harmony Mode / Polyphonic Mode, Momentary Mode
-
Outputs: Main Out, Dry Out
-
Power: EHX 9V power supply included; 9V battery compatible
-
Housing: Compact, rugged chassis
-
Country of Origin: USA
Ideal For
-
Twin-Guitar Harmony Leads: Achieve the iconic harmonized solos of bands like Thin Lizzy, Iron Maiden, or Boston in a single pedal.
-
Solo Performers: Fill out your sound with virtual bandmates for a massive, multi-layered live performance.
-
Experimental Players: Use the polyphonic shifts and sweep controls to create lush, ambient, or otherworldly textures.
-
Pedalboard Builders: Save space without sacrificing power, thanks to its minimal footprint and immense capability.
Instantly create matching harmonies.
