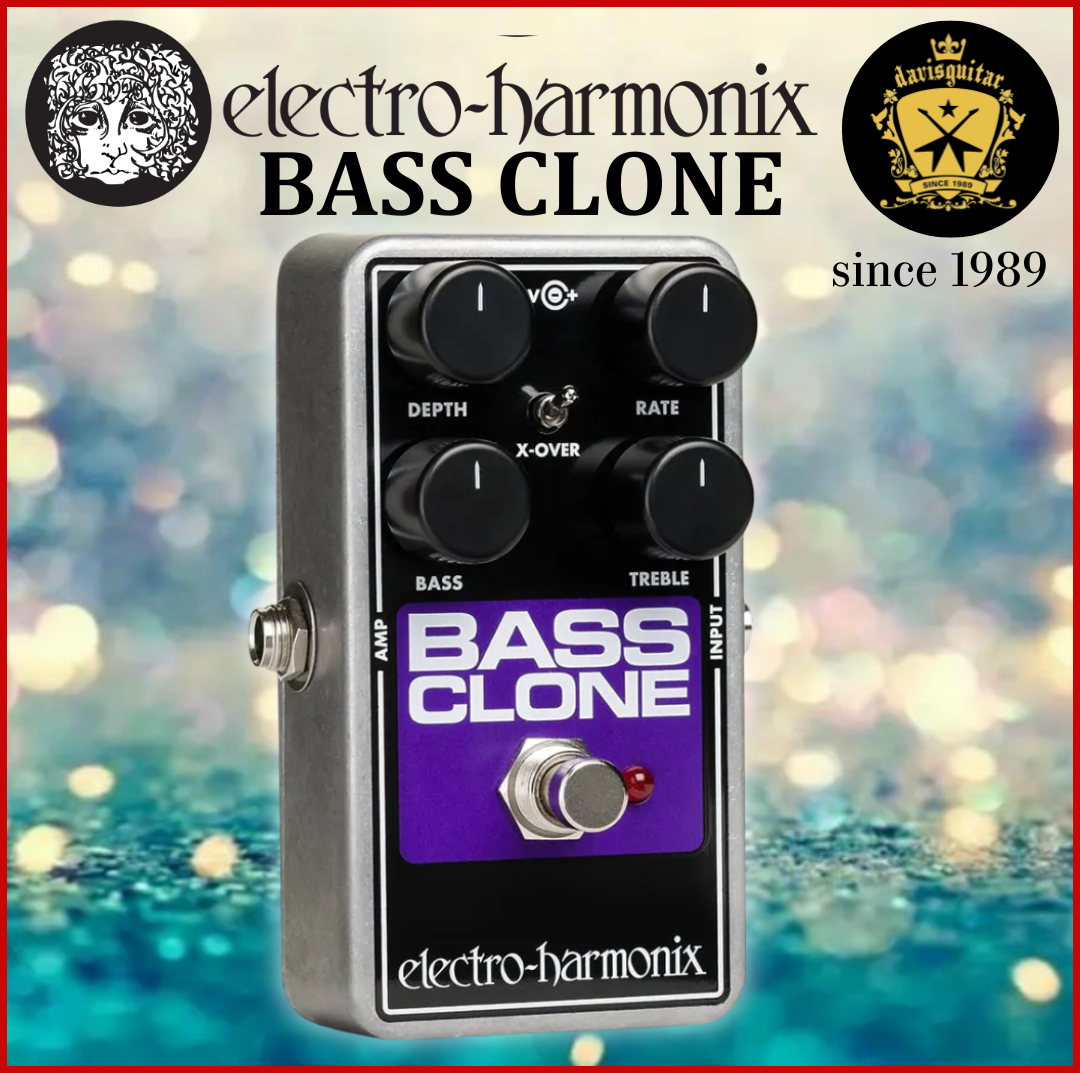

Electro-Harmonix EHX Bass Clone Analog Chorus Effect Pedal

Electro-Harmonix Bass Clone Analog Chorus – Legendary Small Clone Circuit | X-Over Switch, Bass & Treble EQ, True Bypass

Description:

Legendary Chorus. Optimized for Bass.

The EHX Bass Clone delivers the lush, shimmering chorus of the legendary Small Clone—but with features specifically designed for bass guitar. This compact analog chorus pedal provides everything from subtle, shimmering modulation to extreme, vibrato-style effects, all while preserving the clarity and punch of your low end.

The key to the Bass Clone's bass-friendly design is the X-OVER switch, which cuts low frequencies from the modulated signal. This allows your natural, unmodulated low end to remain tight and defined while shimmering chorus sits on top. The BASS control boosts or cuts low end from the dry signal, while the TREBLE control shapes the high end of the entire mixed signal—giving you precise sound shaping for a focused, articulate bass tone. Housed in a compact, road-ready die-cast chassis with true bypass switching, the Bass Clone is the ultimate chorus pedal for bassists.

Key Features:

• Based on the Legendary Small Clone: Core circuitry derived from the iconic Small Clone chorus, with added features optimized for bass.

• X-OVER (Crossover) Switch: Cuts low end from the modulated half of the signal, preserving a tight, punchy low end with excellent note definition.

• BASS Knob: Boosts or cuts low end from the dry half of the effect signal for precise low-end control (no boost/cut at 12 o'clock).

• TREBLE Knob: Boosts or cuts high end from the entire mixed effect signal for overall tone shaping (no boost/cut at 12 o'clock).

• DEPTH Knob: Controls the amount of modulation—from subtle shimmer to extreme vibrato.

• RATE Knob: Controls the speed of modulation.

• True Bypass Switching: Preserves your signal path integrity with maximum transparency when the pedal is disengaged.

• Compact & Road-Ready: Tough, compact die-cast package fits easily on any pedalboard.

Technical Specifications:

• Effect Type: Analog Chorus (Optimized for Bass)

• Controls: DEPTH, RATE, BASS, TREBLE

• Switch: X-OVER (Crossover)

• Bypass: True Bypass (Red LED indicates engaged status)

• Input Impedance: 2.2MΩ

• Output Impedance: 1kΩ

• Input Jack: 1 x ¼"

• Output Jack: 1 x ¼" (AMP)

• Power Supply: 9V Battery (included) or optional 9VDC AC Adapter (center negative, 50mA minimum)

• Current Draw: 15mA at 9VDC

• Dimensions (W x L x H): 2.75" x 4.5" x 2.1" (70mm x 115mm x 54mm)
