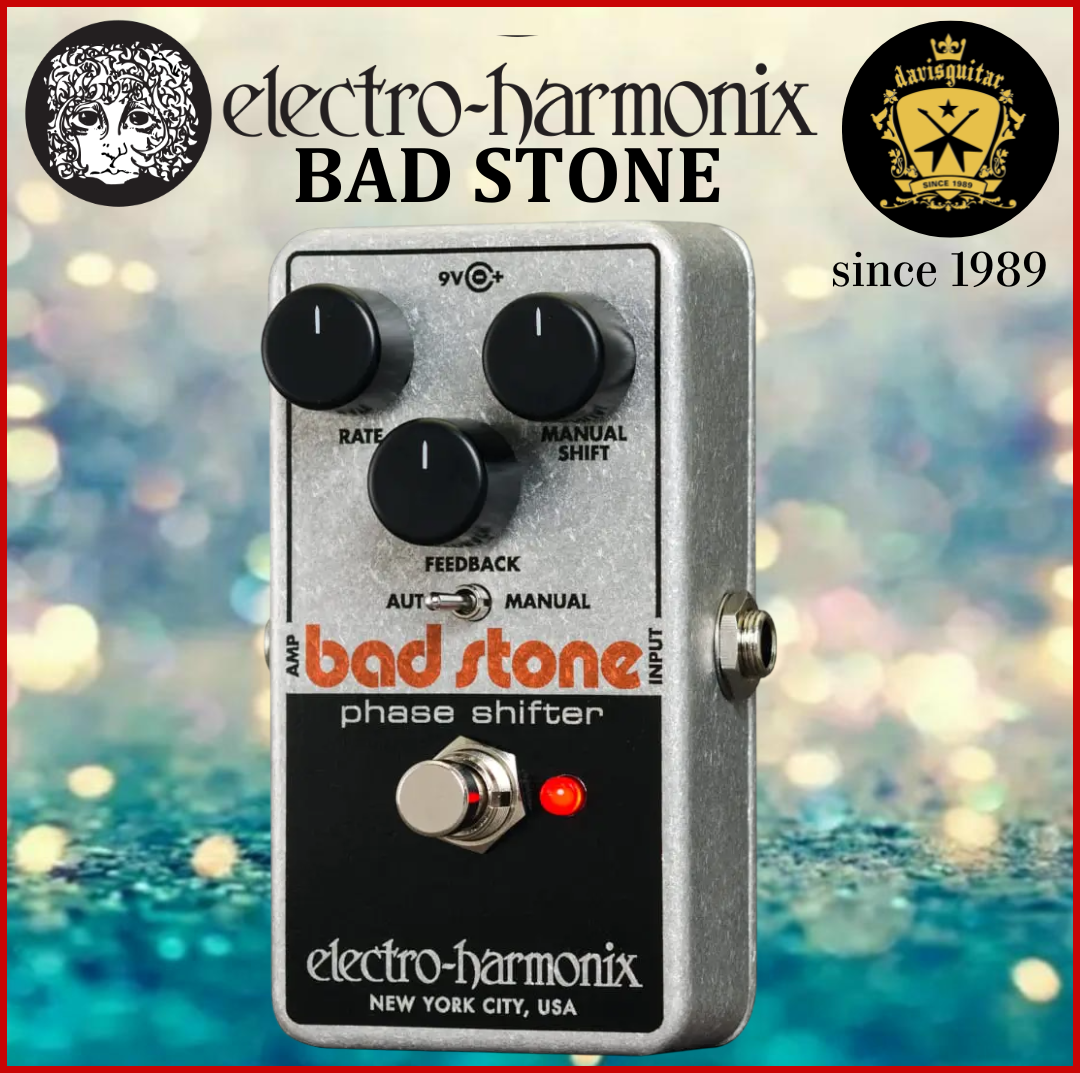

Electro-Harmonix EHX Bad Stone Phase Shifter Guitar Effect Pedal

Electro-Harmonix EHX Bad Stone Phase Shifter – 6-Stage Analog Phaser | Manual Shift Mode, Variable Feedback, True Bypass & 9V Battery Included

Description:

The original six-stage phase shifter with variable feedback and vintage vibe!

The legendary EHX Bad Stone Phase Shifter has been resurrected! With prices of 1970's vintage Bad Stones soaring, now is your chance to get a reissue that is faithful to the original circuit design and three-knob control layout, but features up-to-date enhancements for the modern player. The Bad Stone was the first phase shifter to employ variable feedback and features an awesome six stages of phase shifting.

The Bad Stone delivers an incredible six stages of phase shifting plus a Manual mode that lets the player freeze the phase. Its Rate knob controls the phase shifting speed which goes from a very slow swoosh to a rapid, oscillating warble. Feedback determines the depth of the phase effect and a toggle switch lets the user select Auto or Manual modes. Modern enhancements include True Bypass switching for maximum signal path integrity, an effect status LED, and a standard AC power jack. Housed in a compact, rugged die-cast package, the Bad Stone delivers warm, organic, and dynamic phasing typical of analog circuits.

Key Features:

• Six-Stage Analog Phase Shifter: Delivers thick, sweeping phase shifting with incredible depth and vintage character

• Variable RATE Control: Adjusts modulation speed from slow, smooth swooshes to rapid, oscillating warble

• FEEDBACK Control: Determines the depth and intensity of the phase effect

• Manual Shift Mode: Freezes the phase at any point, allowing for unique static filter effects and sonic landscapes

• AUTO/MANUAL Toggle Switch: Seamlessly switch between LFO-modulated auto mode and manual mode

• True Bypass Switching: Preserves your signal integrity with maximum transparency when the pedal is disengaged

• Tough & Compact Die-Cast Chassis: Road-ready construction with a pedalboard-friendly footprint

• Effect Status LED: Clear visual indication of when the effect is engaged

• Analog Circuit: All-analog design for warm, organic, and dynamic phasing

• 9V Battery Included: Ready to play straight out of the box

Technical Specifications:

• Effect Type: Analog Phase Shifter

• Circuit: Analog

• Controls: RATE, FEEDBACK, AUTO/MANUAL Toggle Switch

• Bypass: True Bypass

• Audio: Mono

• Input: 1 x ¼"

• Output: 1 x ¼"

• Input Impedance: 1.2 MΩ

• Output Impedance: 10 kΩ

• Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)

• Current Draw: 18mA @ 9VDC

• Unboxed Dimensions (W x L x H): 2.75" x 4.5" x 2.1" (70mm x 115mm x 54mm)

• Unboxed Weight: 0.29 kg (0.65 lbs)

• Shipping Weight: 0.65 lbs

• UPC: 683274011639

• Country of Origin: USA
