Description

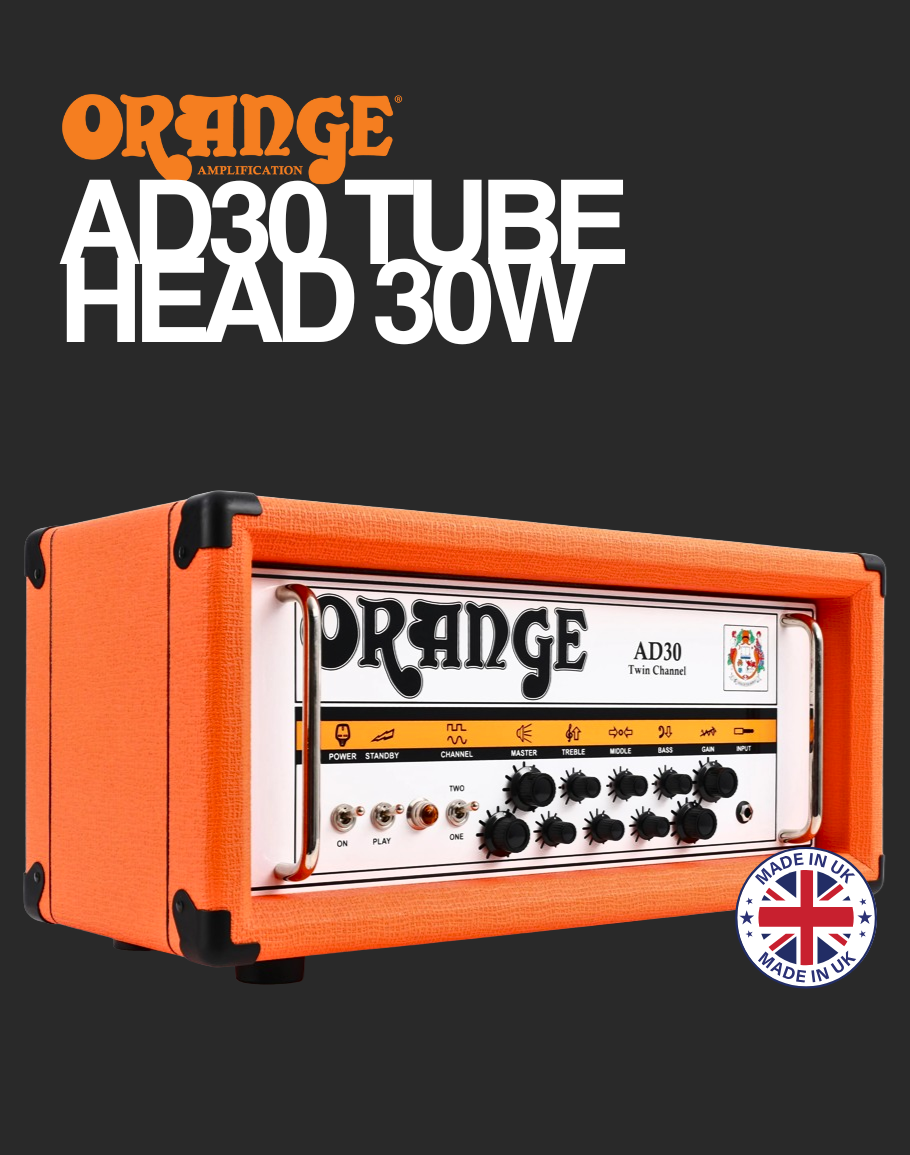

The AD30 is a versatile amplifier that delivers a range of pure British tones. It features four EL84s, a GZ34 valve rectifier, and two channels, each offering distinct Orange tones. Whether you desire shimmering cleans, jangle, or classic crunch, the AD30 provides it all in a durable design.
The product features two independent channels, each with dual gain stages and an easy control layout, allowing for a range of vintage tones. Channel One offers a clean to gritty sound, while Channel Two adds more gain for a sharper edge, ideal for leads and riffs. The GZ34 rectifier valve enhances tone with natural compression and sag, providing a responsive playing experience and adding sweetness to the amp’s dynamic character.
UK BUILT TRANSFORMERS
Like all Orange valve amplifiers, the AD30 uses our own proprietary transformer design. Built in the UK, this painstakingly developed recipe is what gives the AD30 not only its unrivalled tone but also its reputation as one of the hardiest amps on the world’s biggest stages.
- FEATURES: ALL VALVE, TWO-CHANNEL AMP WITH VALVE RECTIFIER
- CONTROLS (RIGHT TO LEFT) GAIN, BASS, MIDDLE, TREBLE AND VOLUME FOR CHANNEL 1&2
- OUTPUT POWER 30 WATTS RMS
- VALVES PREAMP: 4 X ECC83/12AX7
- POWER AMP: 4 X EL84
- RECTIFIER: GZ34
- SPEAKER OUTPUT OPTIONS 1 X 16 OHM CABINET CONNECTED TO THE 16 OHM OUTPUT
- 1 X 8 OHM CABINET CONNECTED TO ONE OF THE 8 OHM OUTPUTS
- 2 X 16 OHM CABINETS EACH CONNECTED TO ONE OF THE 8 OHM OUTPUTS
- UNBOXED DIMENSIONS (W X H X D) 55 X 27 X 24 CM (21.65 X 10.63 9.45″)
- UNBOXED WEIGHT 16.5 KG (36.4 LB)
