Description
ETA: 6-8 months from date of purchase
EDWARDS Legacy Pickup
This pickup was developed with the idea of faithfully bringing out the original sound of the instrument.
It features an open sound with little compression, and reproduces the player’s nuances as they are.
Honest characters with no extra flavor can be chosen by any genre. That nostalgic sound that everyone is familiar with. It is a sound that will continue to be loved and will never fade.
[EDWARDS LEGACY HUMBUCKER – ELH-1n / ELH-1b]
A bright sounding humbucker with a slightly subdued but sufficient output.
Achieved quick start-up without sluggishness when picking.
It also has a clear drive sound that is not found in modern humbuckers.
MAGNET: Ceramic
DC Resistance: 18.1kΩ(B), 7.5kΩ(N)
CABLE: 4-conductor
Reliable Japanese hard parts
Hardware such as pegs and bridges are made in highly reliable Japan.

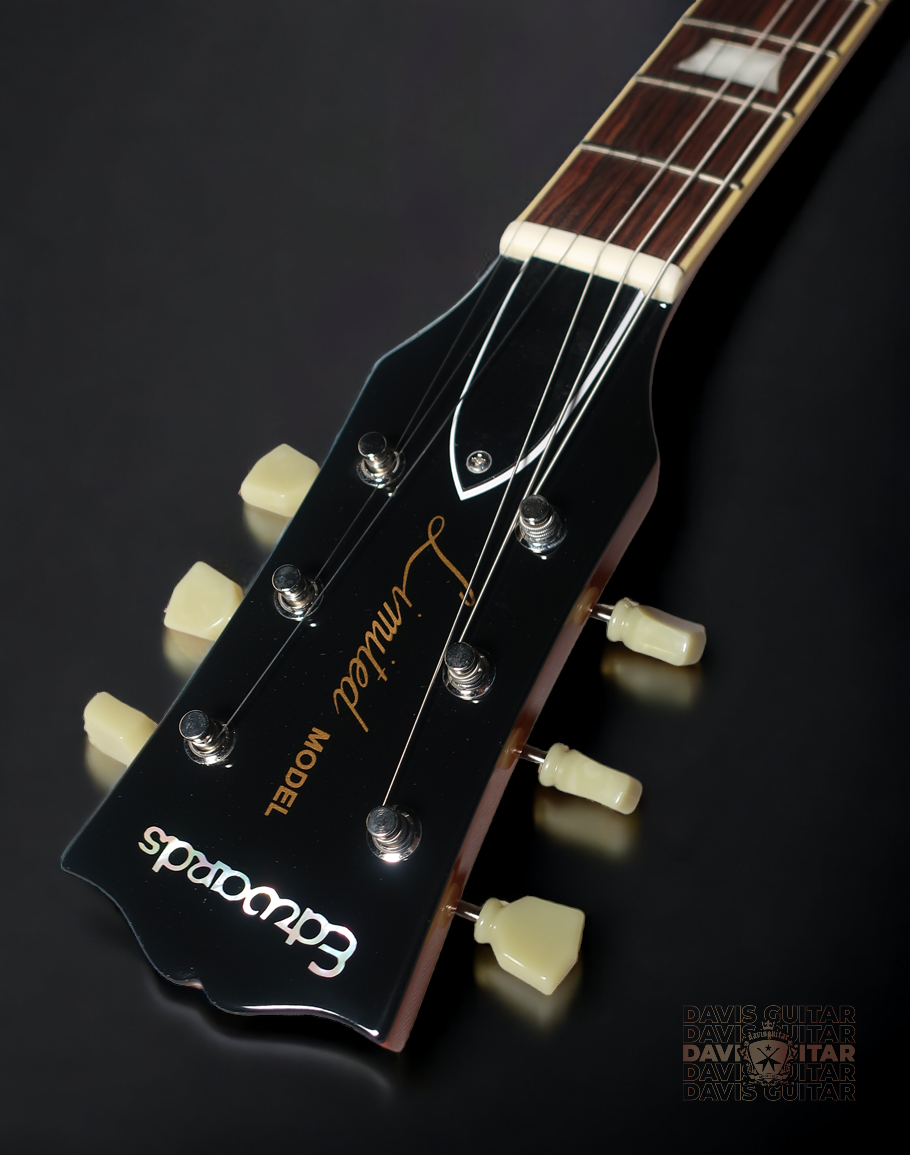

Special head area
The head angle is set at 17 degrees to provide a moderate sense of tension.
In addition, it is a cow bone nut that gives a natural nuance to the nut.
Deep joint
By firmly bonding the neck and body with high precision, it is possible to integrate the string vibrations of the neck and body. The adhesive area is increased by inserting the neck deeper into the body.
- BODY: (Top) Flamed maple veneer laminate over Hard Maple w/Ivory Binding, (Back) Mahogany
- NECK: Mahogany
- FINGERBOARD: Rosewood, 22frets w/Ivory Binding
- RADIUS: 305R
- SCALE: 628mm
- NUT: Bone (43mm)
- INLAY: Grow Acrylic Dish
- CONSTRUCTION: Set-neck(Deep-joint)
- TUNER: GOTOH SD90-SL
- BRIDGE: Old Type Tune-Matic & GOTOH GE101Z
- PICKUPS: (Neck) EDWARDS Legacy Humbucker ELH-1n, (Bridge) EDWARDS Legacy Humbucker ELH-1b
- PARTS COLOR: Nickel
- CONTROLS: Neck Volume&Tone, Bridge Volume&Tone, Toggle PU Selector
- PAINT: Polyester
- SET STRINGS: .010 – .046
